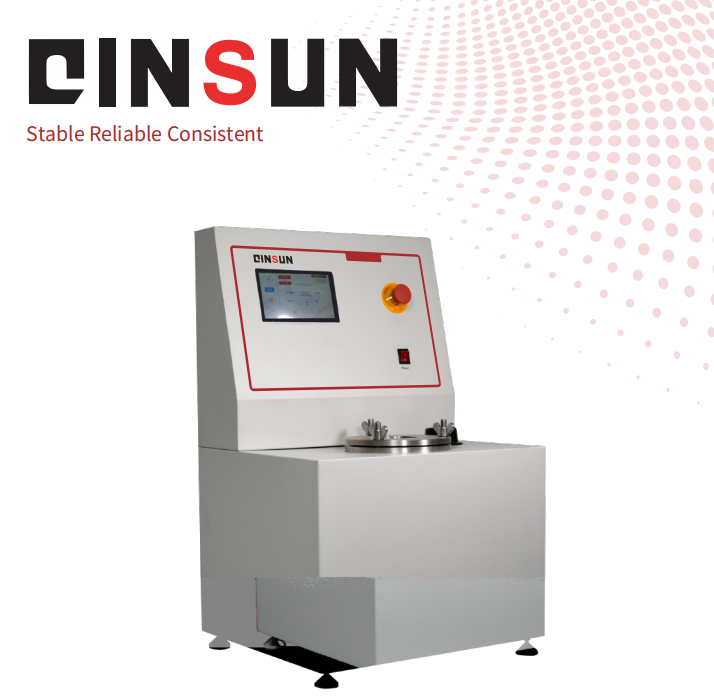

Air Flow Resistance Tester

The Air Flow Resistance Tester is designed to quantitatively evaluate the air permeability and airflow resistance of textile materials. It measures the volume of air passing through a unit area of fabric under a controlled pressure difference, providing objective data for fabric breathability, filter performance, and technical textile assessment.

The instrument automatically calculates air permeability based on airflow rate, specimen area, and applied pressure difference, delivering results in standardized units such as ft³/min/ft², cm³/s/cm², or L/m²/s.

Application

The Air Flow Resistance Tester is suitable for airflow evaluation across the following industries and products:

(1) Textile Industry: woven fabrics, knitted fabrics, nonwoven fabrics, coated fabrics, technical textiles

(2) Apparel and Sportswear Industry: breathable clothing, sportswear, protective wear, jackets, functional garments

(3) Medical and Healthcare Industry: surgical masks, medical gowns, medical nonwoven fabrics, filter materials

(4) Filter and Air Treatment Industry: air filters, HEPA filter media, HVAC filters, automotive filter fabrics

(5) Quality Control and Inspection: production consistency testing, material verification, laboratory testing of fabric batches

(6) Research and Development: development of new textile materials with controlled airflow, comparative fabric studies, innovative breathable fabrics

(7) Technical Textile Applications: industrial fabrics, geotextiles, industrial membranes, packaging materials

(8) Educational and Testing Institutes: teaching laboratories, material testing centers, third-party certification testing

The instrument is widely used for product development, quality control, R&D, and laboratory testing.

Standards

The instrument complies with and can be applied to the following standards (including but not limited to):

(1) ASTM D737 – Standard Test Method for Air Permeability of Textile Fabrics Using the Frazier Tester

(2) ISO 9237 – Textiles — Determination of Air Permeability of Fabrics

(3) EDANA WSP 070.1 – European Nonwovens Association Method for Air Permeability Testing

(4) JIS L1096 – Japanese Industrial Standard for Air Permeability Tests of Fabrics

Features

(1) Automatic control mode for stable and repeatable measurements

(2) Suction-type air supply ensuring uniform airflow through the specimen

(3) Digital measurement and display of airflow and test duration

(4) Multiple test stations (up to 12) for efficient batch testing

(5) Interchangeable test heads and orifice sizes to accommodate fabrics with different air permeability

(6) Compliance with international standards (ASTM, ISO, EDANA, JIS) for reliable and comparable results

(7) Supports quality control, material comparison, product development, and research applications

(8) Objective evaluation of fabric breathability, openness, and technical performance

Technical Parameters

Accessories

Main test unit

Interchangeable test heads and specimen holders

Digital counter and airflow display system

Power cable

Operation manual

Calibration certificate

Test Procedures

(1) Prepare the specimen according to the required standard and condition it as needed

(2) Mount the specimen in the test head and ensure proper sealing of surrounding areas

(3) Set airflow rate and differential pressure on the instrument

(4) Start the automatic test cycle

(5) Measure airflow passing through the specimen and display results digitally

(6) Record air permeability and airflow resistance values

(7) Repeat tests as necessary for multiple specimens or batches

Maintenance Information

(1) Clean the test heads and specimen holders regularly to prevent dust accumulation

(2) Check airflow sensor calibration periodically to ensure measurement accuracy

(3) Inspect air supply system and vacuum/suction components for proper operation

(4) Keep the instrument in a dry, clean laboratory environment

(5) Store electrical and control components properly when not in use

FAQ

1. What is this product?

The Air Flow Resistance Tester measures airflow resistance and air permeability of textile materials. It quantifies the volume of air passing through a fabric under controlled pressure difference, providing objective evaluation of breathability, filter performance, and technical fabric properties.

2. What is it used for?

It is used for evaluating woven, knitted, nonwoven, coated, and technical textiles in applications including clothing, sportswear, medical masks, filter media, industrial fabrics, and technical membranes. The instrument supports product development, quality control, R&D, and laboratory testing.

3. How does it work?

The fabric specimen is mounted in a sealed test head, and air is drawn through it using a suction system. The instrument automatically measures airflow, differential pressure, and calculates air permeability according to standards such as ASTM D737, ISO 9237, EDANA WSP 070.1, and JIS L1096. Results are displayed digitally.

4. Why is it important?

Air permeability is critical for comfort, safety, and functional performance of textiles. This instrument provides standardized, repeatable, and quantitative data to ensure fabrics meet breathability and filtration requirements, enabling consistent quality control and product optimization.

5. Which industries use it?

The tester is widely used in textile manufacturing, apparel, medical products, filter production, technical textiles, R&D labs, quality control centers, and educational or third-party testing institutes for verification and research purposes.
