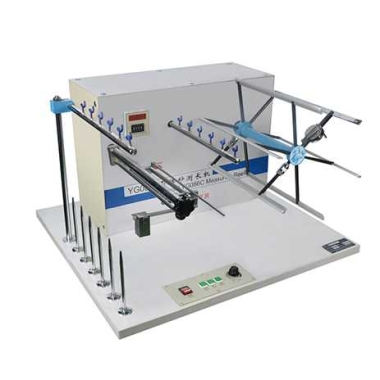

The Skein Length Tester is a precision instrument designed to measure the length of yarn accurately.
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
The Skein Length Tester is a precision instrument designed to measure the length of yarn accurately. It is used for determining yarn linear density (yarn count), yarn strength testing, and evaluating yarn uniformity. The tester employs microcontroller control for smooth, reliable operation, with real-time speed monitoring and adjustable parameters to ensure reproducibility and precision.
The tester is widely used in:
(1) Textile and yarn manufacturing: determining yarn count and linear density
(2) Quality control laboratories: verifying yarn consistency and strength
(3) R&D in textile engineering: testing new yarns or blends
(4) Sewing thread production: evaluating standard compliance of threads
(5) Educational and research institutions: yarn property analysis and training
GB/T 4743: Textiles – Yarn from packages – Determination of linear density by the skein method
GB/T 14343: Testing method for linear density of synthetic filament yarns
GB/T 6838: Testing method for sewing threads
ISO 2060: Textiles – Yarn from packages – Determination of linear density by skein method
ASTM D1907: Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method
(1) Microcontroller control: True single-chip digital control with smooth start/stop and real-time speed measurement
(2) Adjustable stopping laps: Can pre-set 1–5 laps for deceleration to prevent yarn tangling or punching
(3) Continuous variable speed: Adjustable yarn frame speed from 30–260 r/min
(4) Electronic counting and display: LED or LCD display for loop count, speed, and tension
(5) Safety and stability: Emergency stop switch, dust cover option, firm stainless steel and aluminum alloy frame
(6) Pre-tension device: Improves accuracy during testing
(7) Multi-tube testing: Supports up to 6 yarns simultaneously
| Parameter | Specification |
|---|---|
| Frame Perimeter | G171C: 1000 mm ± 1
mm G171E (export): 54 in ± 1/16 in |
| Single Yarn Tension Range | 0–100 cN |
| Swinging Traverse Reciprocating Width | 35 mm ± 0.5 mm |
| Number of Test Tubes | 6 |
| Yarn Frame Speed | 30–260 r/min (stepless adjustment) |
| Yarn Frame Laps Setting | 2–9999 laps |
| Pre-set Stop Laps | 1–5 laps |
| Motor Power | 60 W |
| Power Supply | AC 220V, 50Hz |
| Dimensions (L×W×H) | 780 × 660 × 480 mm |
| Instrument Weight | ~45 kg |
Pre-tension device
Fixed-length winding wire counter
Optional dust cover for safety and cleanliness
Emergency stop switch
Install the yarn on the skein frame and adjust the frame perimeter according to yarn type
Set the desired speed and number of laps for testing
If required, set pre-stop laps for smooth deceleration to avoid yarn tangling
Activate the tester; the system will measure yarn length, tension, and count loops
Record data displayed on the LCD/LED interface for analysis
After testing, clean the frame and components to remove lint or dust
Periodically check and calibrate the tension sensor, speed, and electronic counter for accuracy
