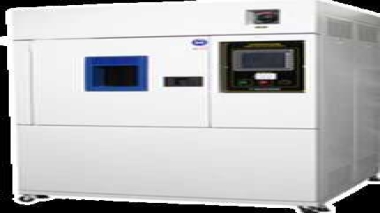

Xenon Arc Weatherometer

Introduction

The xenon arc lamp, which is capable of simulating the whole natural sunlight spectrum in the most consistent manner, can reproduce the destructive light waves in different environments, so that the material can be subjected to light fastness and weather ability acceleration test. It can be used for screening new materials, improved existing materials or assessment of changes in material composition after the change in durability and other tests. The Xenon Arc Long-Life Weather Meter is designed to test a wide range of materials in the fields, such as: paint ink paint, resin, plastic, printing and packaging, adhesives and so on.

Application

The Xenon Arc Weatherometer is widely used for testing the weather resistance of materials, including but not limited to the following fields:

Coatings and Printing: Used to evaluate the weather resistance and photofastness of coatings and printing materials.

Plastics and Packaging: Used to evaluate the weather resistance and durability of plastics and packaging materials.

Automotive and Railroad Industry: Used to evaluate the weather resistance of automotive and railroad equipment.

Cosmetics: Used to evaluate the weather resistance of cosmetic ingredients.

Electronics and Electroplating: Used to evaluate the weather resistance of electronic and electroplating materials.

Medical: Used to evaluate the weather resistance of medical devices and materials.

Standard

PV3929 1303: internal testing standards within the automotive industry.

SAE J 1960: Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Water-Cooled Xenon Arc Apparatus

ASTM G151: Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources

ISO 105: Textiles — Tests for Colour Fastness

MES, NES, VW, JIS and so on.

Feature

1. Water-cooled xenon arc lamp longevity guarantee long life arc 2000hr more.

2. Optical quartz glass xenon arc lamp.

3. The inner and outer filter tube metal coating process (long-life filter tube type).

4. Irradiation intensity monitor the entire process.

5. Ultrasonic and spray humidification system.

6. Rain water temperature control 10-20°C.

7. TFT, LCD color screen.

8. Voltage, current, light intensity, temperature, humidity, rainfall pressure monitor the entire process.

9. The replacement of the filter tube can type, including QUARTZ, SODA LIME, BORO, and GLASS.

10. B.P.T. And B.S.T. selectable control.

11. The effective irradiation area: 6500cm2.

12. Barrel tilting specimen holder 2 layers.

Parameters

Accessoriess

Auxiliary filter lampshade for specialized automotive interior and textile testing methods

Multiple sample holders available for various sample types

Independent xenon lamp cooling system (overhead or wall-mounted)

Textile test kit for AATCC Test Method 16 and/or ISO 105-B02

Tray table for sample racks, logbooks, consumables, or laptops

Xenon lamp and filter storage box

Test Procedures

The operating procedures for a xenon arc weather instrument include disassembling the lamp/filter assembly, replacing the lamp holder, inserting a new lamp and reassembling it, replacing the lamp/filter assembly into the weather instrument, and reconnecting the weather instrument to power. The specific steps are as follows: Disconnect the power to the testing instrument.

Remove the lamp/filter assembly from the weather instrument according to the instructions in the weather instrument's user manual.

Remove the lamp.

Replace the lamp holder.

Insert a new lamp and reassemble the lamp assembly.

Replace the lamp/filter assembly into the weather instrument.

Reconnect the power to the weather instrument.
