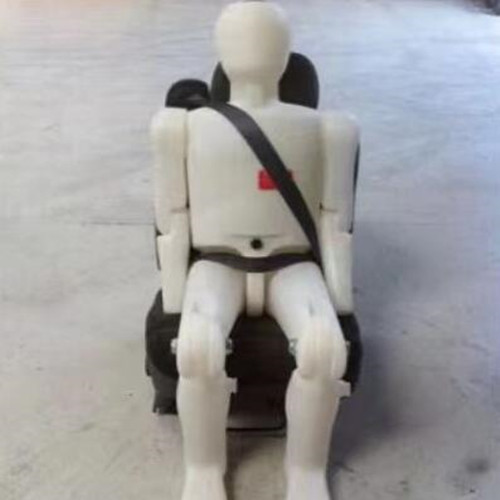

Water injection counterweight dummy

This counterweight dummy can be filled with water, the torso and the bottom are separated,independently filled with water or solid filler, and can be adjusted to the Angle of the backrest to fit the seat, child seat and other operating tests of the car.

Application

Suitable for performance and driving reliability and safety testing of motor vehicles such as passenger cars, buses, small passenger vehicles, construction vehicles, trucks, high-speed trains, and electric locomotives; simulating occupant weight and load (heavy load) configuration testing, with specific gravity similar to that of the human body, more reasonable center of gravity height and mass distribution, which is more conducive to the reliability assessment of vehicle seats;

Motor vehicle accident simulation experiments;

Pedestrian collision tests;

Load safety testing of theme park amusement facilities;

Wheelchair and fitness equipment/device testing, marine life-saving;

Movie props, clothing display;

Aerospace (seat) reliability and seat ejection performance testing, drone safety performance testing;

4D/5D cinema seat load and weapon carrying testing, etc.

Standard Test

LP-463-KB-28-01: Automotive Interior / Seat Testing Company Standard

SAE J826: Society of Automotive Engineers Standard: Vehicle Seat H-Point Measurement Manikin Weighting Specification

ISO 14512: International Organization for Standardization Standard: Road Vehicles - Seat Systems - Manikin and Weighting Requirements for Static Testing

FMVSS 207: Federal Motor Vehicle Safety Standard: Static Strength Testing of Vehicle Seat Systems, requiring a weighted manikin

GB 20071-2006: Chinese National Standard: Strength Requirements and Test Methods for Automotive Seat Systems, with applicable manikin weighting

ECE R17: European Economic Commission Regulation: Certification Testing of Automotive Seats and Headrests, requiring a manikin to simulate occupant load

ISO 7250: Basic Human Body Dimensions Data, manikin body type/center of gravity distribution references this standard

Feature

Water two scales can choose the weight;

Equipped with 2" filler port and plug head, and 1 "drain port, can be customized specific

drain/valve lifting ring port is available.

Parameters

Accessoriess

Standard accessories: Main body,Base,Base shaft fixing screw,Quality mark,Sensor application,Accessory installation and fixing,Accessory installation and fixing

Test Procedures

1. Unpacking & Component Check

Confirm all parts (trunk, base, fixing screws, accessories) are complete; check for damage.

2. Base Assembly

Place the base part on a flat surface; use the bottom shaft fixing screw to secure the base (tighten with a hex wrench).

3. Trunk Connection

Align the trunk with the base’s connection port; lock it in place (ensure the seat belt fixed point faces upward).

4. Filling Operation

Open the filling port (on trunk/base separately); fill with water/sand (refer to Mass Distribution for target weight).Close the port tightly after filling (check for leaks).

5. Backrest Angle Adjustment

Adjust the trunk’s angle to match the test seat (e.g., car seat/child seat) and lock the position.

6. Safety Belt Fixing

Thread the test safety belt through the seat belt fixing grooves on the trunk; fasten it securely.

7. Test Preparation

Confirm all parts are stable; connect sensors (if using) to the dummy’s sensor interface.
