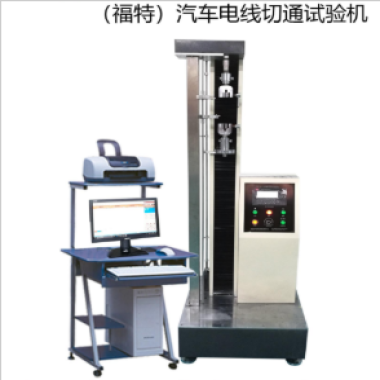

Wire Cut - through Tester for Ford Automotive Wires

Applicable Standard:

Engineering Specification - Ford Global Wire specification, PART NO. ES - AU5T - 1A348 - AA

Technical Parameters:

1. Sensing method: High - precision load cell (sensor) 2. Capacity: 200KG 3. Cut - through speed: 10mm/min 4. Effective measurement range (%): 0.5 - 100 5. Accuracy class: Grade 1 6. Load accuracy: Within ±1% of the indicated value 7. Display: Controlled and recorded by computer software 8. Equipped with an automatic stop function upon cut - through 9. Overload protection: The machine will automatically activate protection when the load exceeds the maximum by 10% 10. Power system: AC servo motor 11. Fixture configuration: One set of fixtures selected according to the user's product requirements 12. Power supply: AC 220V±10%, 50HZ, 5A 13. Dimensions: 56X80X170cm 14. Diameter of the cut - through steel wire: 0.45mm 15. Cut - through test voltage: Less than 24V
