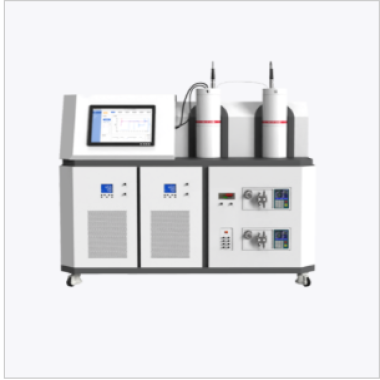

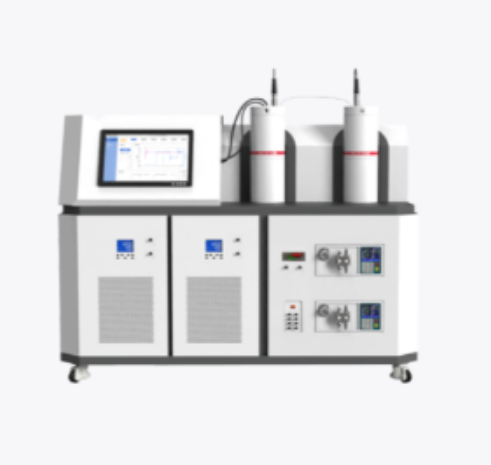

Fully Automatic Continuous Flow Reaction Calorimeter

This product is a highly automated and customizable continuous flow reaction thermal analysis and calorimetry platform. It features automatic sample introduction, preheating, automatic degassing, flow control, enhanced mixing, precise temperature control, and multi-point temperature measurement. It can accurately control continuous reaction conditions and monitor temperature changes at various points in real time. Combining thermal analysis theory, it can analyze and calculate the total heat release, heat flux distribution, peak temperature, and temperature gradient within the continuous flow reactor. It can be widely applied to research on thermodynamic and kinetic parameter analysis, thermal risk assessment, and process optimization for continuous reactions.

Applications

Fine Chemicals | Petrochemicals

Standards

(1)SN/T 3078.1: Inspection of Imported and Exported Commodities - Specifications for the Management of Reference Materials - Part 1: General Principles

(2)NY/T 3784: Determination of Vanillin, Ethylvanillin, Maltol and Ethyl Maltol in Feeds - High Performance Liquid Chromatography

(3)GB 51283: Engineering Design Standard for Raw Material Yards of Iron and Steel Enterprises

Features

(1)Using the coefficient calibration method and flow - regulation calorimetry, it can quickly obtain the reaction heat release and heat - flow distribution, and calculate the peak temperature and temperature distribution.

(2)It enables fully automatic continuous reaction process operations, with functions such as automatic sample injection, pre - heating, automatic degassing, flow control, enhanced mixing, precise temperature control, and multi - point temperature measurement.

(3)The high - performance programmable circulating water bath can be set to automatically complete pre - heating and temperature control of the reaction environment.

(4) It is safe and efficient. The system can operate unattended and automatically complete data recording and analysis.

(5)Reactors can be replaced or added. Different materials of reactors can be selected according to actual needs.

Technical Parameters

Accessoriess

Replaceable/expandable reactors of different materials, high-performance programmable circulating water baths, and supporting functional accessories such as automatic sample injection modules, degassing devices, flow control components, mixing components, and multi-point temperature sensors.

Test Procedures

(1) Pressure: HEL offers a variety of options for studies of reactions in glass containers at 6 bar and 12 bar, and stainless steel containers at 60 bar. There are also options for other alloys and certain special materials. We can even manufacture systems with pressures exceeding 200 bar.

(2)Temperature: By utilizing commercially available heating/cooling systems, we can provide the required temperature range from -80 to +350°C, with an accuracy of +/-0.1°C. These systems also provide a small footprint marker and emergency cooling when needed.

(3)Feeding: Reactant feeding – gaseous, liquid, and solid feeding can be achieved using different technologies. Standard liquid feeding requires a combination of pump and balancing, but syringe pumps are used for low-flow-rate feeds, and pressurized containers are used for fast-flow and highly volatile reagents. Gas feeding is controlled through continuous reactor pressure, container and balancing combinations, or high-flow-rate control. Finally, automated solid feeding is accomplished through HEL's proprietary fully automated screw feeder system.

Maintenance Information

(1)Routine Inspection: Check all electrical connections, sensors, pumps, and flow lines for wear or damage before each operation.

(2)Cleaning: After each experiment, thoroughly clean the reaction channels, sample lines, and sensor surfaces to prevent residue buildup and cross-contamination.

(3)Calibration and Safety Checks: Periodically verify the accuracy of temperature sensors, flow meters, and pressure sensors; ensure safety interlocks and emergency shutoffs are fully functional.

FAQ

1. What is a Fully Automatic Continuous Flow Reaction Calorimeter used for?

It is used to measure heat generation, temperature changes, and reaction kinetics in continuous flow chemical processes, providing essential safety and process data.

2. Which types of reactions can be analyzed?

It can analyze a wide range of chemical reactions, including exothermic and endothermic reactions, polymerizations, and catalytic processes.

3. How does the calorimeter work?

The device continuously feeds reactants through a flow channel while monitoring temperature, heat flow, and pressure, allowing real-time calculation of reaction enthalpy and thermal behavior.

4. What safety features are included?

It is equipped with automatic shutoffs, pressure relief mechanisms, and temperature limits to prevent unsafe conditions during high-heat or high-pressure reactions.

5. How should the calorimeter be maintained?

Routine maintenance includes inspecting flow lines and sensors, cleaning reaction channels after each run, calibrating temperature and pressure sensors, and ensuring pumps and safety interlocks function properly.
