Technical parameters:All parts of the steam jet test chamber in contact with the medium are rust-pro
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

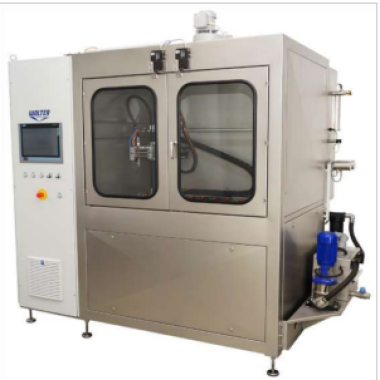

The steam jet testing machine is an important piece of equipment for evaluating the steam aging resistance of materials and is widely used in industries such as rubber, plastics, and coatings. To ensure the accuracy and reliability of the test results, proper operation of the steam jet testing machine is crucial.
Steam jet testers are widely used in fields such as automotive manufacturing, electronics, and aerospace, to evaluate the performance, durability, and safety of products in high-temperature and high-pressure environments. For example, in automotive manufacturing, they can be used to test the adhesion strength, water resistance, and corrosion resistance of coatings; in the aerospace industry, they can be used to test the performance of materials under extreme conditions.
DIN EN ISO 16925:20: Paints and varnishes - Determination of the resistance of coatings to pressure water-jetting
DBL 5416: Mercedes-Benz Supply Specification for Parts Manufactured from Thermoplastics for Externally Applied Paneling, Housings, and Functional Parts
Ford BO 160-04: Ford Laboratory Test Method - High-Pressure Steam Jet Test for Coating Resistance
GM 9531: General Motors Test Specification for Paint and Coating Performance
Volvo STD 423-0015: Volvo Test Standard for Coating Resistance to Environmental Factors
VW PV 1503: Volkswagen Test Specification for Paint and Coating Durability
BMWAA-0136: BMW Test Method for Coating Adhesion and Resistance
Renault D 252018: Renault Test Standard for Interior Materials Flammability
PSA D 255376: PSA Group Specification for Material
MAN M 3022: MAN Truck & Bus Test Specification for Component Durability and Performance
Operating pressure (up to 140 bar), resp. flow volume (up to 15 l/min)
Test medium temperature (up to 70. resp. 80°C)
Nozzle
Nozzle distance
Spray angle
Spray duration
| Feature/Specification | Details |
|---|---|
| Steam Jet Test Chamber Material | All parts in contact with the medium are rust-proof and can be operated with deionized water |
| Pump Body | Direct drive motor with ceramic plunger, high safety, low wear, includes safety valve and control motor protection; injection time can be set by timer in display (1 second to 9 minutes) |
| Pressure Control | Externally adjustable via pressure control valve; pressure depends on spray (refer to manufacturer's specifications) |
| Technical Data - Flow Rate | 14.8 L/min |
| Technical Data - Working Pressure (P) | 30-140bar, adjustable by external pressure regulator |
| Technical Data - Motor (N) | 6.5 kW, 400V; Plug: 32 amps, 5 poles |
| Technical Data - Water Supply | 2-3 bar, 15°C |
| Nozzle Distance | 0-450mm |
| Test Angle | 90° - 45° - 30° ± 2°; door with inspection glass, exhaust bore 102mm, fitting, discharge port with dirt filter |
| Bottom Frame | Stainless steel base with housing and 4 guides |
| Sterilization Water Change Program | Execute every 7 days; automatic cycle sterilization water change program - manual water change triggers automatic heating of tank water to 68°C; water sprayed out through nozzle when tank reaches 68°C; automatic cycle stops when tank reaches 70°C; tank must be cooled to operating temperature after completion |
| Door Lock Device | Automatically electromagnetically locked during pump operation; door cannot be opened while pump is running |
| Heating Container | Heating power: 9.0 kW; maximum temperature: 80°C ± 2°C; digital display; preheating time: 1 hour |
Injectors, heating devices, pressure/temperature sensors, flow control valves, nozzles, test fixtures, control system, and safety protection components.
Preparation: Ensure the equipment is in good condition and regularly inspected to ensure proper functioning.
Testing Method: Select the appropriate testing method based on different testing requirements. For example, stationary nozzle testing and moving nozzle testing.
Parameter Adjustment: Adjust parameters such as spray angle, water temperature, and water pressure according to testing requirements.
Safe Operation: Pay attention to safety during the testing process to avoid burns.
Results Analysis: After the test, analyze the results and evaluate them according to the standards.
