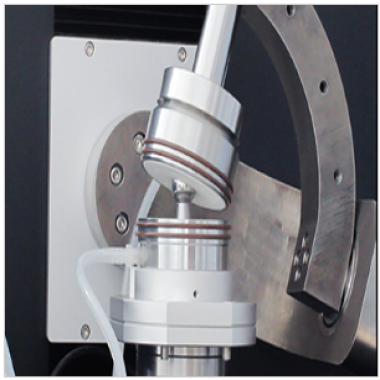

Total Hip Joint Prostheses Wear Tester

Standard

• YY/T 0651.1-2016 (China): Specifies wear testing parameters for total hip prostheses, including angular motion, loading modes, and environmental conditions.
• ISO 14242-1:2014 (International): Defines protocols for simulating physiological loading and kinematics during hip joint wear testing.
• ASTM F3047M-15: Additional compliance for advanced testing scenarios including edge loading and micro-separation.

Product Advantages

1. Triaxial Motion Simulation: Replicates full physiological motion profiles (flexion/extension ±100°, abduction/adduction ±30°, internal/external rotation ±40°).
2. Dynamic Load Control: Dual-peak loading up to 4,500 N with 0.1% force accuracy.
3. Biorelevant Environment: Temperature-controlled (37±2°C) lubrication bath with 30±2 g/L protein concentration.
4. Extended Durability: Capable of 5+ million cycle testing with <0.5% drift in calibration.
5. Automated Compliance: Pre-programmed ISO/YYT test protocols with real-time data validation.
6. Modular Design: Six-station configuration allows parallel testing of multiple specimens.

Product Features

• Electrohydraulic Actuation: Six independent servo-hydraulic actuators for precise motion control.
• 3D Force/Torque Sensors: Multi-axis sensors measure axial forces and torsional moments simultaneously.
• Temperature-Controlled Bath: Recirculating lubrication system with protein concentration monitoring.
• High-Resolution Imaging: Optional integration with micro-CT systems for in-situ wear analysis.
• AI-Powered Analytics: Machine learning algorithms predict wear rates from initial test cycles.
• Safety System: Emergency stop, over-pressure relief, and laser-based specimen breakage detection.

Technical Parameters

Standard Accessories

1. Hip Simulator Fixture Kit:
   • Self-centering femoral head adapters (16–32 mm)
   • Acetabular cup positioning jigs (60° inclination standard)
2. Biorelevant Bath System:
   • 15L capacity with recirculation pump and protein skimmer
   • 316L stainless steel construction with HEPA filtration
3. WearMaster Pro Software:
   • Automated wear rate calculation (mass loss/volume displacement)
   • 21 CFR Part 11-compliant audit trail with blockchain timestamping
   • Remote monitoring via iOS/Android app
4. Operator Kit:
   • Calibrated torque wrench set (1–50 Nm)
   • Specimen alignment gauges (ISO 14242-1 compliant)
5. Calibration Bundle:
   • NIST-traceable force calibration weights
   • Angular encoder verification tool
6. Safety Kit:
   • Laser safety curtains
   • Acoustic enclosure with 30 dB noise reduction
