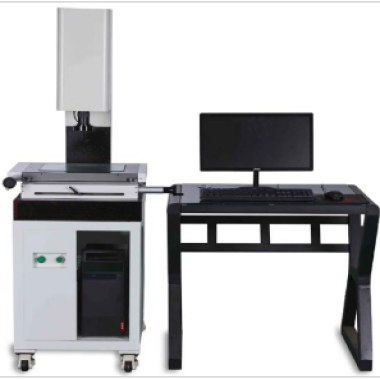

Automatic Z-axis Vision Measuring Machine

Product Introduction:

The Z-axis automatic image measuring instrument can efficiently detect the wheel corridors and surface shapes of various complex workpieces, such as: templates, stamping parts, cams, threads, gears, forming milling cutters and other tools, tools and parts, as well as terminals, watches, diamonds and so on.

It is widely used in machinery, mold, instrument, electronics, light industry and other industries, and is an indispensable measurement and verification equipment for measuring rooms and production workshops.

Standards

JJF1318-2011. GB/T24762-2009

Abundant parameters:

Measurement accuracy :≤(3+L/200)μm

Mode of operation: Z-axis auto (can measure height, auto focus)

Grating resolution :1um

Magnification: Optical magnification 0.7X-4.5X, image magnification 20-180X(customizable)

Imaging system: Hikvision Gigabit network high-speed optical fiber digital camera (no video image card is required for clearer)

Star measurement travel :300*200*180mm, 400*300*180mm, 500*400*180mm, 600*500*180mm, can be customized
