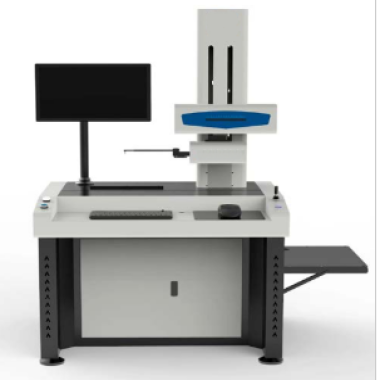

Roughness profiler

Product Introduction

The profiler is measured by the slip of the stylus of the instrument and the surface to be measured, and is a contact measurement. Its main advantage is that it can directly measure the surface of some parts that are difficult to measure, such as the surface roughness of holes, slots, etc., and can directly read or describe the shape of the surface contour curve according to some evaluation standard, and the measurement speed is fast, the results are reliable, the operation is easy to measure the plain line shape of various precision machinery parts, straightness, Angle, crown logarithm curve, depth, width and other parameters.

Optional

The double needle profiler detects the middle diameter of thread, groove diameter and inner diameter.

Standard

ASTM E950/E950M-22

AASHTO R56-14

AASHTO R57-14

AASHTO M328-14

ASTM E1926-08(2021)

EN 13036-6:2008

ISO 3274:1975

GB/T 6062-2002

JIS B 0633:2001

ISO 21920-1:2021

ISO 4288:1996

Product Features

This series of instruments are widely used in machining, motor, auto parts, motorcycle parts, precision hardware, precision tools, tools, molds, optical components and other industries. Applicable to scientific research institutes, universities, metrology institutions and enterprises measuring rooms, workshops. Measuring bearing, needle roller, roller, motor shaft, crankshaft, cylindrical pin, piston pin, piston, valve, valve, gear, oil pump nozzle, hydraulic parts, pneumatic parts, spinning machine accessories, etc.

Technical Parameters

Measuring range :X direction :100mm, contour measuring range :20mm, 40mm, 60mm

Z-axis operating height :400mm

Minimum measuring hole :25mm

Linear accuracy :±(1.2+10.15H|)um

Arc :±(1.5+R/12)um

Angle :±1'

Straightness :0.5um/100mm

Optical resolution :0.01um

Measurement speed (contour)：0.02mm to 4.0mm/s

Climb Angle: up 77 degrees, down 88 degrees
