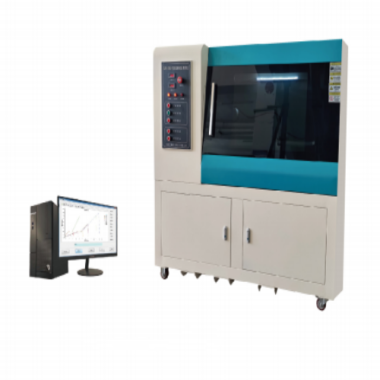

Computer controlled voltage breakdown tester

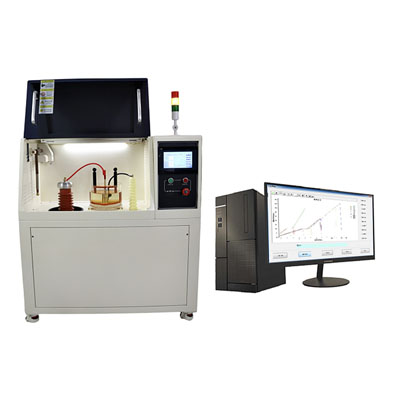

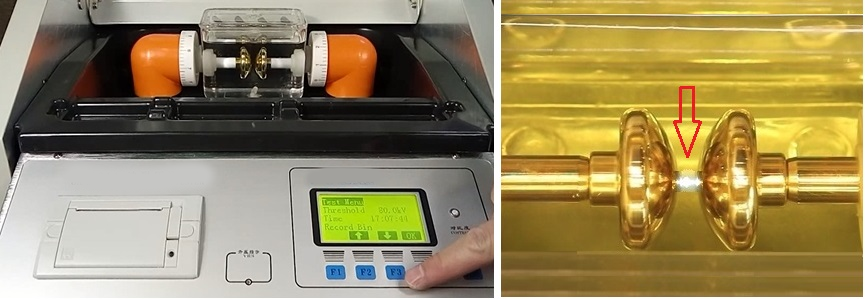

Recommend：Oil Breakdown Voltage Tester

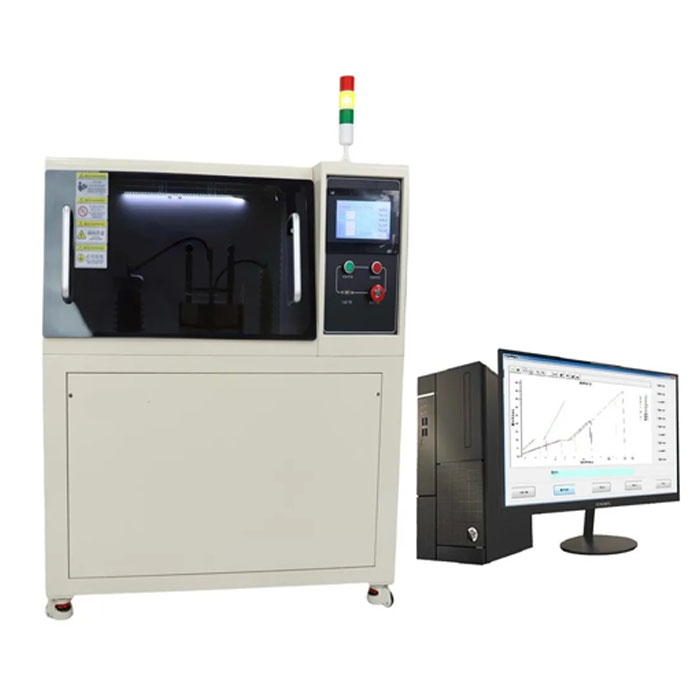

Product Introduction

Computer controlled voltage breakdown tester is mainly suitable for solid insulating materials such as wire bushings, resins and adhesives, impregnated fiber products, mica and its products, plastics, film composite products, ceramics and glass and other media under power frequency voltage or DC voltage breakdown strength and voltage resistance time test, the instrument is controlled by computer. It can collect and process all kinds of data in the test process quickly and accurately, and can access, display and print.

Applicable Standards

GB/T1695-2005 "Vulcanized rubber power frequency breakdown voltage strength and voltage resistance determination method"

GB/T 3333 "Cable paper frequency breakdown voltage test method"

GB/T 12913-2008 "Capacitor Paper"

ASTM D149 "Test Method for Dielectric Breakdown Electrical, Voltage, and Dielectric Strength of Homogeneous Electrical Insulation Materials at Industrial Power Supply Frequencies"

IEC 60156, ASTM D877,ASTM D1816

Technical Indicators

1. Input voltage :AC220V 50Hz

2. Output voltage :AC:0——100kV; DC:0——100kV

3. Output power :10kVA

4. Measurement error :≤2%

5. Voltage boost rate 0.5kV/s——10kV/s

6. Voltage endurance time :0——4(stable voltage without breakdown

7. Leakage current :1——30mA can be set freely by computer software

8. Power supply: AC 220V+10% single-phase AC voltage and 50Hz+1% frequency

9. Test environment: Temperature :15——30℃， relative humidity :0——85% can run stably

10. Dimensions :1570x1240x1850mm

11. Equipment weight: about 150ka

12. Grounding requirements: need to be grounded separately, grounding is attached to the national standard requirements, and the metal rod buried deep underground should be at least 1.5 meters below

Key Features：

• Programmable high-voltage testing with user-defined parameters

• AC and DC high voltage testing capability

• 20 × 4 LCD display for clear test parameter indication

• RS-232 communication interface for PC connectivity

• Automatic test report generation through PC software

• 16-key operating keypad for easy programming and control

• Audio and visual alarm for HV ON and HV OFF status

• Emergency OFF switch for enhanced operator safety

• Input fuse protection for reliable operation

• Test status indication for Test Pass, Test Fail, HV ON, HV OFF

• Data storage capability for test records and analysis

• Suitable for insulation and dielectric strength testing applications
