Film impact tester

A Film Impact Tester is a device designed to measure how well a film or thin material can withstand sudden impact or shock without breaking, cracking, or puncturing. It is commonly used in laboratories and quality control environments.

Product Introduction

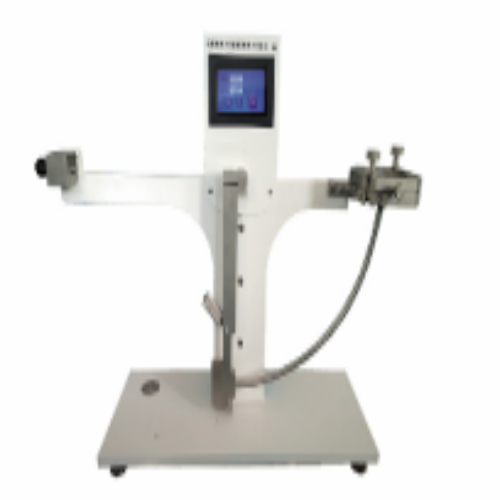

The film impact testing machine, through the hemispherical punch at a certain speed, impacts and passes through the film sample, measures the energy consumed by the punch, and evaluates the anti-pendulum impact energy of the film sample.

The sample to be measured is placed in the middle of two splints to clamp, and the pendulum is adjusted by counterweight to form enough mechanical energy to impact the surface of the sample to be measured during the impact process to break down or not break down the sample to be measured. The energy borne by the sample to be measured is the loss part of the total mechanical energy formed by the pendulum during the impact process, and is read out on the dial through the pointer.

standards

(1)ASTMD3420-2014

(2)GB8809-2015

(3)GB/T 20624.1—2006/ISO 6272-1:2002

(4)ASTM D2794—2019

Applications

(1)Packaging Materials

Test the impact resistance of plastic films, laminates, and flexible packaging materials.

Evaluate durability for bags, pouches, wraps, and protective films.

(2)Plastic & Polymer Films

Assess brittleness, toughness, and impact strength of PVC, PE, PET, and other polymer films.

Ensure materials meet quality and safety standards.

(3)Industrial Films & Coatings

Evaluate surface coatings, laminates, and protective films for mechanical stress tolerance.

Determine suitability for automotive, electronics, or construction applications.

(4)Research & Development

Used in laboratories and universities for materials testing, formulation optimization, and durability studies.

Supports R&D of new polymer blends, laminates, and film products.

(5)Quality Control & Production Monitoring

Ensures film materials meet industry or customer specifications before shipment.

Helps identify manufacturing defects and improve production consistency.

(6)Standards Compliance

Supports testing according to ASTM, ISO, and other international standards for film impact resistance.

Performance parameters

- Full range of dial: 3J/(30cm.kgf)

- Maximum impact energy: 3J

- Hammer diameter: Φ25.4mm: suitable for test specimens with diameter of medium 50-60 (Class A test in the standard); Φ19mm: Suitable for testing specimens with a diameter of 89 (Class B test in the standard)

- Reading dial minimum scale value: 0.020J/ grid (0.20cm.kgf)

- Specimen clamp diameter: Φ89mm, Φ60mm

- Swing range: R300mm

- Swing Angle: 90°

Accessories

(1)Dart (Impact Head)

A hemispherical impact head used to strike the film specimen.

(2)Weight Set

Used to adjust the total impact mass to meet different test standards.

(3)Specimen Clamping Device

Holds the film securely to prevent movement during testing.

(4)Guide Tube (Drop Tube)

Ensures the dart falls vertically and impacts the correct position.

(5)Release Mechanism

Controls the accurate release of the dart from a specified height.

Test Procedure

(1) Preparation

Ensure the equipment is clean and in proper working condition.

Select the appropriate test method and weight according to standards.

(2) Specimen Preparation

Cut the film sample to the required size.

Make sure the specimen is smooth, clean, and free from defects.

(3) Mount the Specimen

Place the sample between the clamping rings.

Tighten securely to avoid slipping during testing.

(4) Set Parameters

Choose the correct dart weight.

Set the drop height or testing method.

(5) Conduct the Test

Raise the dart to the specified height.

Release the dart to impact the specimen.

Observe whether the film fails (breaks) or remains intact.

(6) Record Results

Record pass/fail results.

Repeat the test as required and calculate average values or failure probability.

(7)After Testing

Remove the tested specimen.

Clean the test area.

Turn off the equipment.

FAQ

(1) What is this product?

A Film Impact Tester is a laboratory testing instrument designed to measure the impact resistance and toughness of thin materials, such as plastic films, sheets, and flexible packaging materials. It helps determine a material’s ability to withstand sudden external force without failure.

(2) What is this product used for?

This product is used to:

Evaluate impact strength and puncture resistance of films

Test durability of packaging materials

Compare performance of different materials

Support quality control and product development

It is especially important in ensuring that materials can resist damage during handling, transportation, and storage.

(3) How does this product work?

The machine typically operates using a controlled impact method:

A film specimen is clamped securely in place.

A weighted dart or pendulum is released from a set height.

The weight impacts the film surface.

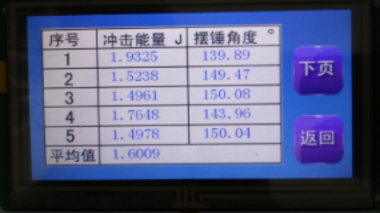

The system records whether the sample fails and calculates the impact energy required to cause damage.

Results are used to determine the material’s impact resistance performance.

(4) Why is this product important?

Ensures product safety and packaging reliability

Reduces risk of damage during shipping and handling

Helps optimize material thickness and cost efficiency

Supports compliance with international testing standards

Improves overall product quality and competitiveness

(5) Which industries is this product suitable for?

The Film Impact Tester is widely used in:

Plastic film and flexible packaging industry

Food and beverage packaging

Pharmaceutical packaging

Agricultural films and greenhouse materials

Chemical and industrial packaging

Quality inspection laboratories

Research institutes and universities
