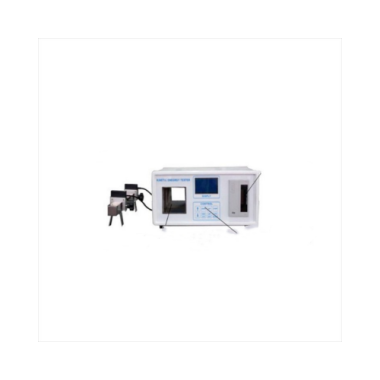

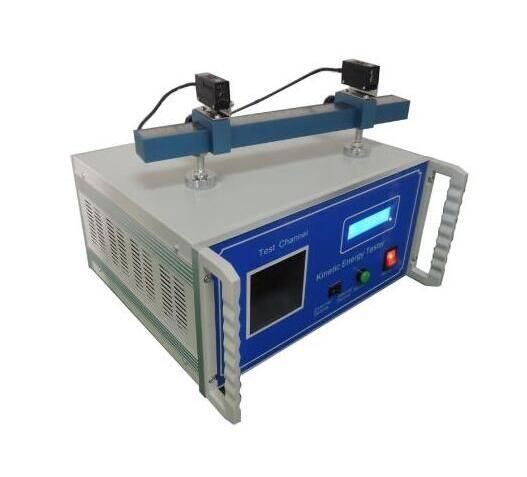

Ejection Kinetic Energy tester

Velocity measuring ejection kinetic energy tester, suitable for ejection projectiles, energy storage ejection toys, non-energy storage ejection toys kinetic energy test, such as toy guns, crossbows, etc.

All kinds of Rojectile Toys can be tested on the Kinetic Energy tester

Application

Military field:

Widely used in the performance testing and evaluation of high-speed projectile weapons such as missiles, artillery shells, and rockets, to ensure their accuracy and destructive power under various conditions.

Aerospace field:

Used to test the friction of tires during aircraft takeoff and landing, braking performance, and the ejection escape performance of aircraft.

Automotive manufacturing field:

Used to test the performance of automotive braking systems, suspension systems, and tires to ensure the safety and stability of vehicles during high-speed driving.

Toy manufacturing field:

Used to test the safety performance of projectile toys for infants and children, ensuring that the toys meet relevant safety standards.

Standards

ISO 8124-1 : Safety of toys — Part 1: Safety aspects related to mechanical and physical properties

GB6675-2 : Safety of toys — Part 2: Mechanical and physical properties

EN-71-1: Safety of toys — Part 1: Mechanical and physical properties

ASTM F963: Standard Consumer Safety Specification for Toy Safety

Feature

High-precision measurement:  Utilizing high-precision speed sensors and kinetic energy calculation modules, the system accurately measures the projectile's flight speed and kinetic energy.

Automated testing: The equipment supports automated testing procedures, reducing manual intervention and improving testing efficiency.

Safety protection: Safety protection devices ensure safety during the testing process, preventing harm to personnel and equipment.

Parameters

Accessoriess

1 kinetic energy meter

1 power cord

1 operating manual

Test Procedures

Preparation: Place the projectile kinetic energy tester on a stable platform and ensure it maintains a certain distance from the object being tested. Select the appropriate velocity measurement device and energy measurement device based on the mass and characteristics of the object being tested, and connect them to the main unit.

Power Connection: Connect the projectile kinetic energy tester to the power adapter and plug it into a power outlet. Confirm that the power indicator light is on, indicating that the device is successfully powered on.

Setting Parameters: Based on the characteristics of the object being tested, use the buttons or knobs on the control panel to set the sensitivity and measurement range of the velocity measurement device, as well as the sampling frequency and measurement units of the energy measurement device.

Calibrating the Measurement Devices: Before conducting actual testing, the velocity measurement device and energy measurement device need to be calibrated. Refer to the calibration manual or instruction manual provided with the equipment for calibration procedures.
