Main uses:Evaluation of shock absorption and cushioning performance: The shock absorption and cushio
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
SATRA TM142
ASTM F1614
ASTM F1976

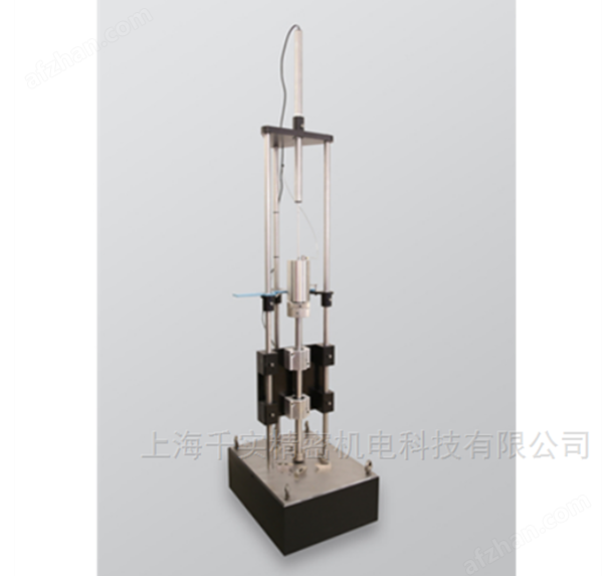

1. Uncompromising Precision
Hemispherical Impactor: 45mm diameter (37.5mm radius) ensures repeatable contact geometry.
8.5kg Calibrated Mass: ±0.01kg tolerance for ISO 179-1 equivalent energy calculations.
2. Versatile Testing
Multi-Material Compatibility: Evaluates EVA foams, gels, composites, and corrugated packaging.
Adjustable Drop Height: 10–1.000mm range for low-speed to high-energy impacts.
3. Advanced Sensing
Dual-Channel Acquisition: Simultaneously captures acceleration (10.000 Hz) and displacement (0.01mm resolution).
Auto-Calculated Metrics: Rebound energy, indentation depth, and damping ratio displayed in real-time.
4. User-Centric Design
Quick-Release Mechanism: Tool-free height adjustment via magnetic safety interlocks.
7” Touchscreen HMI: Pre-loaded SATRA TM142 protocols with adjustable test parameters.
5. Data Integrity
21 CFR Part 11 Compliance: Audit-ready electronic records with e-signatures.
Cloud Integration: Wireless sync to LIMS platforms for collaborative R&D.
Impact System:
Servo-controlled release mechanism with 0.1mm positional accuracy.
Hardened steel impactor with tungsten carbide coating for wear resistance.
Sensing Suite:
Piezoelectric accelerometer (±5.000g range).
Laser displacement sensor (0.01mm resolution, 500mm range).
Safety Systems:
Acrylic enclosure with interlock sensors.
Emergency stop with E-Stop loop monitoring.
Software Bundle:
ShockVision Pro™: Real-time force-time curves and energy loss calculations.
MaterialDB: Store/compare test results across material batches.
Data Management:
USB 3.0 port for raw data export.
API integration with MATLAB/Python for custom analysis.
Calibration Kit:
NIST-traceable accelerometer and displacement sensor.
Weight verification set for impactor mass.
Software Add-Ons:
Fatigue Predictor: AI-driven lifespan estimation via cumulative damage modeling.
CloudLink: Remote monitoring for global teams.
Safety Upgrades:
Explosion-proof enclosure for solvent-resistant testing.
HEPA filtration for particle-sensitive labs.
Custom Fixtures:
High-temperature clamps for thermoplastic testing.
Cryogenic chamber adapter for low-temperature impact studies.
Consumables:
20 × Disposable sample alignment targets.
1L Silicone lubricant for high-cycle testing.
| Specification | Details |
|---|---|
| Impact Mass | 8.5 kg ±0.01 kg (18.7 lbs) |
| Drop Height Range | 10–1.000 mm (0.4–39.4”) |
| Max. Impact Velocity | 4.43 m/s (1.000mm drop) |
| Accelerometer Range | ±5.000g (1g = 9.81 m/s²) |
| Displacement Resolution | 0.01 mm (0.0004”) |
| Data Rate | 10.000 Hz (acceleration) |
| Power Supply | 220V/50Hz (110V/60Hz available) |
| Dimensions (W×D×H) | 600mm × 500mm × 1.800mm |
| Weight | 150 kg (net) |
