Application ScopeThe garment fabric wet adhesion performance tester is used to evaluate the adhesion
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

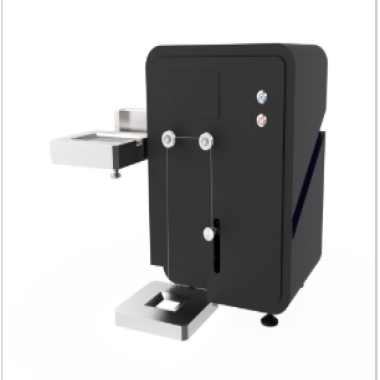

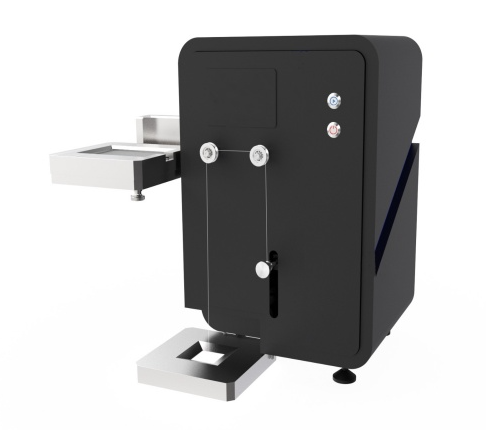

The Garment Fabric Wet Adhesion Performance Tester evaluates the adhesion of clothing fabrics to human skin after exposure to liquids. It is suitable for quality control, R&D, and compliance testing in apparel and textile industries.
Determine wet adhesion of garments to human skin.
Evaluate fabric performance after immersion in liquid.
Support research and development of functional and performance garments.
T/CNGA 64-2024: Test Method for Wet Adhesion of Garments
FZ/T standard (Under review and pending release)
| Parameter | Specification |
|---|---|
| Evaluation System | Four-level grading system (Grade 1: Excellent, Grade 4: Poor) |
| Maximum Load Range | 300 g |
| Force Measurement Range | 0.4% – 100% FS |
| Measurement Precision | 0.03% FS |
| Testing Speed | 1 – 100 mm/min |
| Maximum Displacement | 80 mm |
| Displacement Precision | 10 µm |
| Servo Motor & Driver | Panasonic |
| Dimensions (W×D×H) | 545 × 419 × 509 mm |
| Power Supply | AC 220V ±10%, 400 W |
| Net Weight | 25 kg |
Measures adhesion between garment fabrics and human skin from multiple angles.
Preloaded with industry standards and established test groups.
User-friendly menu-driven software with functional modules, supporting real-time curve display, data export, and printing.
Extended functions available to support R&D activities.
Dual serial port connection for full PC control of the testing process.
Touchscreen display for improved visibility and monitoring.
Advanced components ensure fast response, high control precision, and stable, accurate results.
Standard: 1 set of clamps, 1 touchscreen controller, 1 PC interface cable
Optional: Additional software modules, printer
Clean clamps and fixture surfaces after each test to avoid residue buildup.
Periodically check calibration of the force sensor and displacement encoder.
Keep touchscreen and electronics free from moisture and dust.
Inspect servo motor and driver connections for proper function.
(1) What is this product?
A tester for evaluating wet adhesion of garment fabrics to human skin.
(2) What is this product used for?
Used to determine adhesion performance after fabrics are soaked in liquids.
(3) What is the working principle?
The device applies a controlled tensile force to the fabric against a simulated skin surface, measuring resistance and adhesion.
(4) Why is this product important?
Ensures garments meet functional requirements for comfort, safety, and durability.
(5) What industries is this product suitable for?
Textile, apparel, sportswear, functional clothing, and R&D laboratories.
