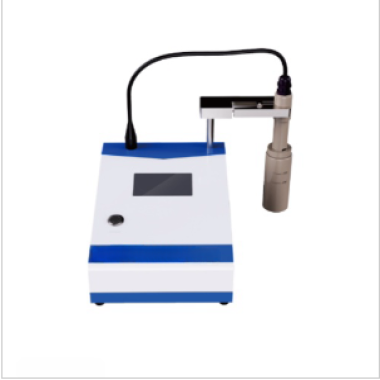

Battery Slurry Resistance Tester

The Battery Slurry Resistance Tester is a precision testing system designed to measure the resistivity of high-solid battery slurries and conductive coatings. By providing rapid, accurate, and non-contact resistivity measurements, the system ensures quality control, process monitoring, and R&D optimization in battery manufacturing. It is widely used by battery material developers, electrode manufacturers, and testing laboratories for inline production monitoring, performance evaluation, and compliance verification.

Application

(1) Measurement of resistivity in lithium-ion, sodium-ion, and solid-state battery slurries.

(2) Quality control of cathode/anode slurry consistency in battery electrode production.

(3) Evaluation of conductive coatings, including carbon black, graphite, and conductive additives.

(4) Inline monitoring of slurry stability during mixing, coating, and drying processes.

(5) R&D optimization of electrode formulations for improved ionic conductivity and energy density.

(6) Temperature-dependent resistivity testing with automated viscosity compensation.

(7) Integration with PLC/SCADA or IoT platforms for real-time process feedback.

(8) Predictive diagnostics of slurry stability using AI-driven trend analysis.

Standards

(1) ASTM B193 – Standard Test Method for Resistivity of Electrical Conductor Materials.

(2) ISO 18516 – Conductive Coatings – Measurement of Resistivity.

(3) IEC 62660-3 – Secondary Lithium-Ion Cells, Part 3: Safety Requirements.

(4) RoHS Compliance – Restriction of Hazardous Substances.

(5) CE Certification – Conformité Européenne for electrical safety and EMC compliance.

Features

(1) Sub-milliohm sensitivity for high-solids slurries (0.1 mΩ·cm).

(2) Non-contact gap-sensing electrodes to eliminate contamination risks.

(3) High-speed measurement: 2-second test cycle for inline production monitoring.

(4) Auto-cleaning system with solvent-resistant nozzles to prevent cross-contamination.

(5) 7” HD glove-compatible touchscreen with multi-language interface (10 languages).

(6) QR code-enabled data export for instant sharing.

(7) Chemical-resistant 316L stainless steel enclosure with PTFE coating.

(8) IP65-rated for dust, splash, and cleaning agent resistance.

(9) IoT-enabled real-time data streaming via OPC UA.

(10) AI-driven predictive diagnostics for slurry stability assessment.

(11) Dynamic temperature control (-20°C to 80°C ±0.2°C) via built-in Peltier module.

(12) Multi-frequency DC/AC measurement (1 Hz – 10 kHz) with viscosity compensation for slurries up to 10,000 cP.

(13) Laser-guided probe immersion depth control (±0.05 mm).

(14) Emergency shutoff via magnetic reed switch.

Parameters

Accessories

(1) Slurry Testing Kit: Platinum-iridium electrodes (10 mm / 20 mm spacing), disposable sample cups (100 mL, 500 mL).

(2) Software Suite: SlurryAnalyst Pro license (Windows/macOS), 6-month free cloud-based SPC tools access.

(3) Calibration & Safety: NIST-traceable standard resistors (10 mΩ, 100 mΩ, 1 Ω), chemical-resistant gloves (Class 0, 2 pairs).

(4) Portability Case: Waterproof Pelican case with custom foam inserts, shoulder strap, and padlock eyelets.

(5) Documentation: Multilingual quick-start guide (printed + digital), compliance certificates for ASTM/ISO/CE standards.

Test Procedures

(1) Fill the disposable sample cup with battery slurry and insert electrodes.

(2) Set test parameters including test voltage, measurement frequency, and temperature control.

(3) Start the test; the system performs resistivity measurement and records data in real time.

(4) Monitor results via touchscreen interface or export through QR code or data interface.

(5) Analyze resistivity trends for quality control, R&D, or process optimization.

Maintenance Information

(1) Inspect electrodes, probe holders, and sample cups for wear or contamination before each test.

(2) Calibrate measurement system periodically using NIST-traceable standard resistors.

(3) Clean Peltier module, sample area, and enclosure to prevent slurry residue build-up.

(4) Verify all electrical connections and safety features (magnetic reed switch, emergency stop) before operation.

(5) Store the instrument in a clean, dust-free, and vibration-free environment.
