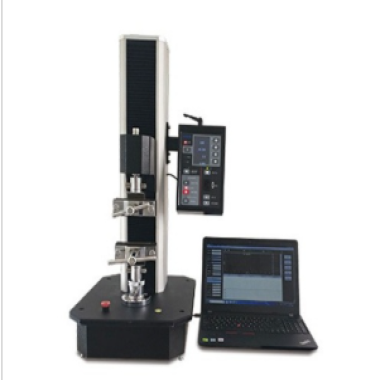

Children's Product Comprehensive Force Tester

The Children's Product Comprehensive Force Tester is a versatile and fully automated instrument designed to evaluate the mechanical strength and safety of children’s products. It integrates tensile, compression, and torsion testing in one platform, providing precise, repeatable, and real-time data. This tester is ideal for quality control, product development, and regulatory compliance testing for toys, children’s clothing, and other child-related products.

Application

This tester is suitable for mechanical performance testing of children’s products according to national and international safety standards, including:

Tensile testing for toys, garments, and accessories

Compression and pressure testing under constant load or constant time

Torque and rotational resistance testing

Analysis of product durability and safety under mechanical stress

Quality assurance for new product development

Laboratory and factory testing for compliance with children’s product regulations

Research and development testing of materials and design improvements

Standards

The instrument meets the following national and international standards:

GB/T 31701-2015 – Safety technical specifications for children’s textile products

GB/T 6675-2003 – Safety requirements for toys

GB/T 32599 – Safety requirements for children’s products

EN 71-1 – European Toy Safety Standard, Mechanical and Physical Properties

BS 7909 – British toy safety standard

ASTM F963 – Standard Consumer Safety Specification for Toy Safety

16CFR1500.51 – U.S. Federal Regulations on Mechanical Hazard

GB/T 22704 – Children’s product mechanical performance test methods

Additional national and international toy and children’s product safety regulations

Features

(1) Integrated tensile, compression, and torsion testing functions in one instrument.

(2) Microcomputer-controlled system with electronic sensors and high-precision ball screws.

(3) AC servo motor drive ensures smooth, accurate, and repeatable testing.

(4) Control panel provides instant access to test functions: start, stop, return, calibration, gauge length reset, and jog.

(5) Fully automated data processing, storage, and analysis of test results.

(6) High precision and reliability for compliance with global children’s product standards.

(7) Versatile testing for a wide range of specimen types and sizes.

Technical Parameters

Accessories

Standard clamps and grips for tensile, compression, and torque testing

Torque adapters and fixtures

Computer interface and data acquisition software

Calibration weights and torque verification kit

Power cable and user manual

Test Procedures

(1) Install the specimen in the appropriate clamps or fixtures.

(2) Select the testing mode: tensile, compression, or torque.

(3) Set parameters such as load, speed, elongation, or rotation angle.

(4) Start the test and monitor real-time measurements of force, torque, and displacement.

(5) Data is automatically recorded and can be exported for analysis.

(6) Repeat the test for multiple specimens as required.
