Application Scope

The color absorption effect analyzer is used to simulate the usage environment and analyze the color absorption effect of anti-bleeding color absorption materials. It is applicable to textile products and materials.

Test Principle

Place the sample to be tested in the test bottle. The machine simulates the actual usage environment and performs actions such as forward and reverse rotation and pausing. If necessary, transmittance and color absorption time can be collected for further analysis.

Applicable Standards

Industry standard "Anti-bleeding Color Absorption Nonwoven Fabric" released in 2023

Technical Parameters

1. Light source: LED spotlight, Voltage: 12V; Power: 3W; Color temperature: White 6500K

2. Distance between the center of the lamp and the bottom plate: 80mm

3. Test bottle: Transparent PET bottle (Diameter: 58 ± 5mm, Height: 130 ± 5mm), with a hook inside the bottle cap

4. Light source receiver: Measuring range: 0.045 - 1.88x105lx, Resolution: 0.045lx

5. Distance between the light source receiver and the lamp: 219mm

6. Rotational speed: (0 - 120) r/min adjustable

7. Time: (0 - 999999) s adjustable

8. Color touch screen: 7 inches

9. Power supply: AC220V ± 10%; 60W

Standard Configuration

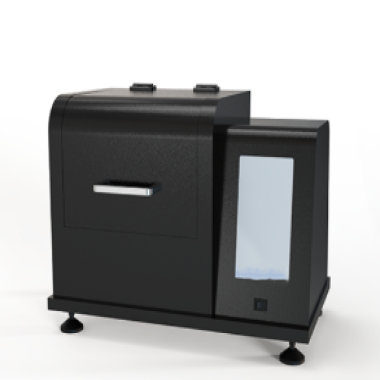

1 Main unit

2 Test bottles
