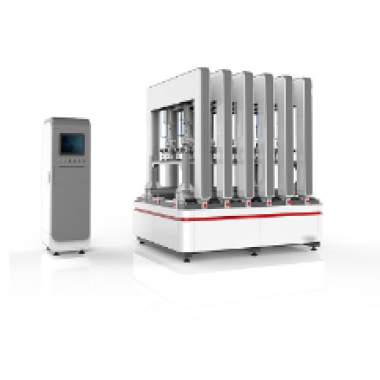

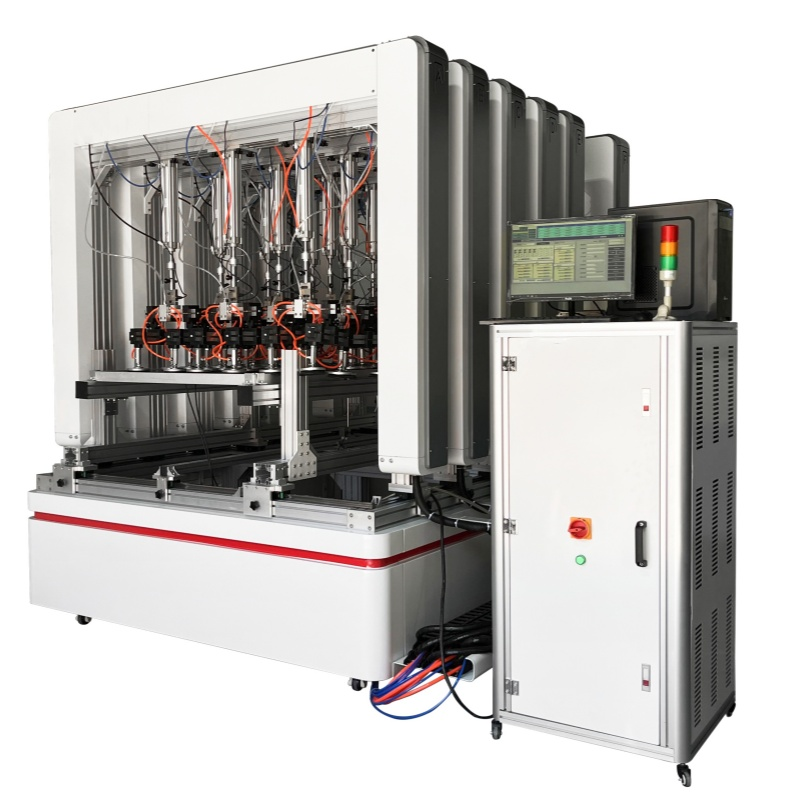

Mechanical Load Testing Machine for Photovoltaic Modules

The Mechanical Load Testing Machine for Photovoltaic Modules is designed to verify the structural reliability of PV modules under static and dynamic loads such as wind, snow, or ice at various installation angles. It simulates real-world load conditions to assess compressive strength and performance, ensuring modules meet international standards for durability and safety. Widely used in laboratories and quality inspection facilities, the system provides precise, repeatable, and automated testing for module certification and development.

Application

This machine is designed to verify the ability of photovoltaic (PV) modules to withstand static and dynamic loads such as wind, snow, or ice accumulation at different installation angles. It is widely used for pressure resistance testing of PV modules, employing dynamic holding technology to simulate load conditions and assess compressive strength under load.

Standards

IEC 61215, UL 1703, IEC 61646, IEC 62782

Technical Specifications

Features

(1) High Accuracy and Reliability: Uses low-friction pneumatic cylinders and high-precision force sensors (0.1 N) for accurate load application and measurement.

(2) Dynamic and Static Load Testing: Capable of applying forward, reverse, and cyclic dynamic loads to simulate real-world conditions.

(3) Customizable Fixtures: Test platform and suction cups can be adjusted to accommodate different module sizes and mounting methods.

(4) Robust Structure: Aluminum profile frame remains deformation-free under load, with surface treated to prevent corrosion and discoloration.

(5) Automated Control System: Upper computer software allows one-button operation, automatic pressure adjustment, real-time display, and plotting of pressure, deformation, and cylinder forces.

(6) Data Management: Stores up to 100 historical test results, supports real-time data recording, and exports reports in Word, Excel, PDF, or JPG formats.

(7) Multi-Language Interface: Software supports Simplified Chinese, Traditional Chinese, and English.

(8) Safety and Alerts: Integrated fault warning system with software alerts and audible alarms to ensure safe operation.

(9) Real-Time Monitoring: Monitors current continuity of PV modules during testing to detect electrical issues.

(10) Flexible Test Configuration: Dynamic load frequency, cycle count, and pressure parameters are fully adjustable to meet different testing standards.

Conclusion

The Mechanical Load Testing Machine for Photovoltaic Modules provides a comprehensive solution for evaluating the structural strength and reliability of PV modules under both static and dynamic load conditions. With precise load control, automated operation, real-time monitoring, and advanced data management, it ensures accurate, repeatable, and standardized testing. Its customizable fixtures, robust construction, and user-friendly interface make it ideal for laboratories, certification centers, and manufacturers seeking to validate module performance and durability in accordance with international standards.

FAQ

1.What is this product?

The Mechanical Load Testing Machine for Photovoltaic Modules is a testing system designed to apply static and dynamic loads to PV modules, simulating real-world environmental stresses such as wind, snow, and ice.

2.What is this product used for?

It is used to evaluate the compressive strength, structural reliability, and current continuity of photovoltaic modules, ensuring they meet international standards for durability and safety.

3.What is the working principle of this product?

The machine applies controlled forward, reverse, and cyclic loads using pneumatic cylinders and suction cups. Real-time sensors monitor pressure, deformation, and electrical continuity, while the automated control system adjusts load parameters and records test data.

4.Why is this product important?

It ensures photovoltaic modules can withstand environmental stresses throughout their service life, reducing failure risks and supporting certification according to IEC, UL, and other standards.

5.What industries is this product suitable for?

It is suitable for photovoltaic module manufacturers, research and development laboratories, quality inspection centers, and certification agencies.
