Pneumatic fabric dilatometer

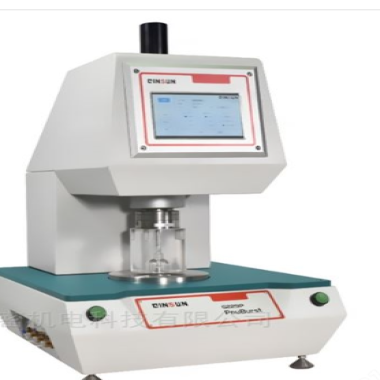

The pneumatic fabric dilatometer is a highly efficient testing device primarily used to measure the bursting strength and bursting height of various textiles, non-woven fabrics, leather, and other materials. It utilizes pneumatic pressure applied to the test sample, with data measured by precision sensors.  It features accurate testing, simple operation, and a wide range of applications. This instrument complies with numerous domestic and international standards and is an important tool for quality control and product inspection in the textile, leather, and other industries.

Application

It is mainly used to test the bursting strength and bursting expansion of knitted fabrics, woven fabrics, non-woven fabrics, laminated fabrics, and other fabrics manufactured by various processes under standard conditions or in a wet state.

Standard Test

ISO 13938.1：Textiles - Bursting properties - Part 1: Hydraulic method for determination of bursting strength and bursting distension

ASTM D 3786：Standard Test Method for Bursting Strength of Textile Fabrics by Hydraulic Pressure

JIS L1018.6.17：Textiles - Testing methods for woven fabrics - Part 6: Bursting strength

FZ/T 60019: Nonwoven fabrics - Determination of bursting strength

FZ/T 01030: Determination of seam strength and elongation of knitted fabrics and elastic woven fabrics - Grab method

GB/T 7742.1-2005: Textiles - Bursting properties - Part 1: Determination of bursting strength and bursting distension - Hydraulic method

Feature

Strong after-sales service team

Timely and efficient problem resolution for customer peace of mind

Complete spare parts inventory to avoid long waiting times

Regular updates to meet the latest industry standards

Parameters

Accessoriess

Standard accessories: Standard test clamps ，Pneumatic pressure sensor (matching 0–3000kPa range)，Sample positioning guide ，

Operation manual (with standard compliance notes)，Equipment leveling feet (4 pcs)，Power cord (compatible with AC220V).

Optional accessories:Custom test clamps ,High-precision pressure calibration gauge,Data export software (to generate test reports in PDF/Excel format),Spare pneumatic seals (for test clamp airtightness),Replacement pressure sensor (for long-term use).

Maintenance Information

1.Daily Maintenance

After each test, clean the test clamps and sample platform with a lint-free cloth to remove fabric debris.

Check the pneumatic seal of the clamps; ensure no air leakage (to maintain test pressure stability).

2.Regular Maintenance (Every 3 Months)

Calibrate the pressure sensor using a standard pressure gauge (verify accuracy within 0–3000kPa range).

Lubricate the pneumatic clamp’s moving parts with light machine oil to ensure smooth operation.

Inspect the air pipeline for blockages; blow it clean with compressed air if needed.

3.Annual Maintenance

Replace the pneumatic seals (even if no leakage is found, to prevent aging-related issues).

Check the control system’s software; update it if there are data display errors.

4.Troubleshooting

If pressure rises abnormally: Check the pressure regulator and adjust it to the standard test rate (20±5s).

If test area accuracy drifts: Re-calibrate the clamp size (50cm²/100cm²) with a standard ruler.
