The key performance requirements for the Friction Simulator are that it applies a defined load cycle in a predictable and repeatable fashion and measures the very low levels of friction generated within the lubricated joint.

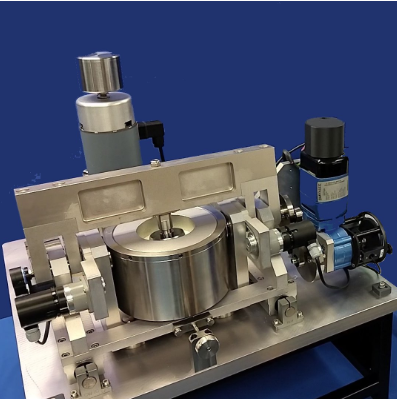

The machine comprises two support systems for the hip and knee joint components. Hip joints are inverted from their natural position. The acetabular cup or tibial plate component is mounted in a low friction trunnion mounted reservoir carried in a loading frame. The femoral component (either a taper mounted ball or special fixed axis knee piece) is mounted on the underside of a rigid cross-beam that is oscillated through an adjustable pre-set angle. A jig is provided to ensure that the femoral component is oscillated about its centre and is aligned with the lower test piece.
| Load Range: | 200 to 2.500 N |
| Load Sensor: | piezo-electric transducer |
| highest sensitivity: | 10 mN |
| highest range: | 7.500 N |
| Frequency Range: | 0.02 to 1 Hz |
| Oscillating Angle: | 0 to +/- 35 degrees |
| Friction Sensor: | piezo-electric transducer |
| highest sensitivity: | 1 mN |
| highest range: | 500 N |
| Maximum Knee Size: | 85 mm wide |
| Interface: | Phoenix Tribology USB micro-controller interface |
| Software: | COMPEND 2020 |
| Controlled Parameters | Applied Load |
| Rotational Speed (Frequency) | |
| Number of Cycles | |
| Test Duration | |
| Measured Parameters | Applied Load |
| Rotational Speed (Frequency) | |
| Frictional Torque | |
| Number of Cycles | |
| Test Duration | |
| Services | |
| Electricity: | 220/240V, single phase, 50 Hz, 3 kW |
| 110/120 V, single phase, 60 Hz, 3 kW | |
| Installation | |
| Bench-mounting machine: | 580 mm wide x 560 mm deep x 560 mm high |
| Bench-mounting cabinet: | 540 mm wide x 540 mm deep x 450 mm high |
| Packing Specifications: | 1.73 m3, GW 270 kg, NW 230 kg |
