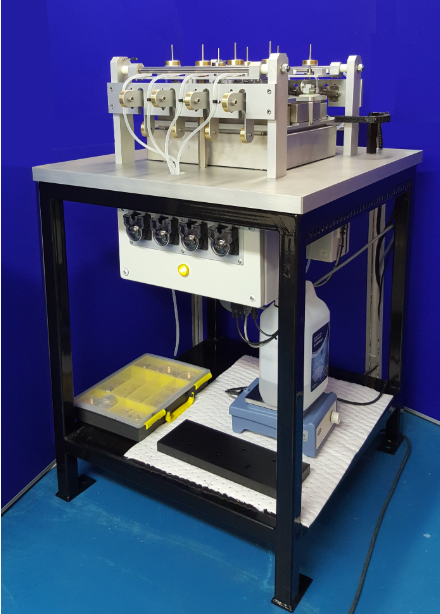

The STD-TE 85 Eight Station Orbital Tooth Brushing Rig provides circular orbital, elliptical orbital and reciprocating motion, with fixed tooth brush samples loaded against moving teeth samples.
Toothbrushes are cut down for easy attachment to the loading arms.
The motion system comprises a platform mounted on an x-y slide assembly and actuated by a double scotch yoke mechanism driven by an a.c. gear-motor. The frequency of motion is controlled by inverter and may be adjusted in the range 0.2 to 2.0 Hz. The displacement on one axis is set at an amplitude of 5 mm (stroke of 10 mm) and the amplitude on the orthogonal axis may be set at 0 mm (reciprocating), 1. 2. 3. 4 mm (elliptical orbital motion) or 5 mm (circular orbital motion).
| Technical Specifications | |
| Load per brush: | 150 to 500 grams |
| Motion x direction: | 10 mm (fixed) (+/-5 mm) |
| Motion y direction: | 0 to 10 mm in 2 mm steps (+/-0. 1. 2. 3. 4. 5 mm) |
| Maximum Frequency: | 2 Hz (120 rpm) |
| Automatically Controlled Parameters | Frequency |
| Test Duration | |
| Fluid Flow Rate | |
| Manually Controlled Parameters | Load |
| Y Amplitude | |
| Measured Parameters | Frequency |
| Load (optional) | |
| Friction Force (optional) | |
| Number of Cycles | |
| Services | |
| Electricity: | 220/240V, single phase, 50 Hz, 3 kW |
| 110/120 V, single phase, 60 Hz, 3 kW |
