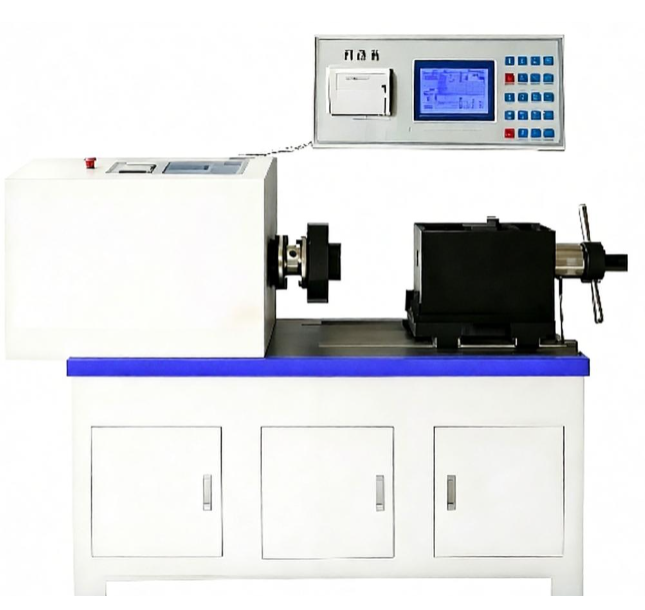

Drill Bit Torsional Breaking Force Tester

The Drill Bit Torsional Breaking Force Tester is mainly used for torsion performance testing of drill bits and various metal and non-metal materials.A drill bit is a cutting tool used to create through holes or blind holes in solid materials and to enlarge existing holes. Common types of drill bits include twist drills, flat drills, center drills, deep hole drills, and core drills.

Application

The tester is widely used for torsion testing of welding joints, spring steel, steel wire ropes, steel wires, electrical wires, cables, and other metal and non-metal materials. It can obtain performance parameters such as maximum torque, torsional strength, upper yield strength, and lower yield strength.

The Manual Material Torsion Testing Machine performs torsion tests through manual loading. It uses a high-precision torque sensor to measure torque, a photoelectric encoder to measure rotation angle, and digital display to show test results. It is mainly suitable for research institutions, universities, colleges, and mechanical laboratories of industrial and mining enterprises for determining the torsional properties of materials.

Applicable Standards

ISO 1173 — Hand-held Tools — Dimensions and Performance Requirements for Screwdriver Bits

DIN 3126 — Driving Tools with Hexagon Drive for Power Screwdrivers

ASTM F1505 — Standard Specification for Insulated and Insulating Hand Tools (Related torque performance reference)

GB/T 230.1 — Metallic Materials — Rockwell Hardness Test (Related material performance reference)

GB/T 10128 — Metallic Materials — Torsion Test Method at Room Temperature

GB/T 2611 — General Requirements for Testing Machines

Main Technical Specifications

Main Features

Specially designed for torsional fracture strength testing of drill bits and cutting tools.

Accurately measures breakage torque, torsion angle, and torsional strength of drill bits.

High-precision torque sensor provides reliable test data.

Supports automatic loading and real-time data acquisition.

Automatically records torque–angle curves and test results.

Suitable for different sizes and types of drill bits with customizable fixtures.

Simple operation, stable performance, and high testing accuracy.

Widely used for tool manufacturers, hardware industries, quality inspection departments, and research laboratories.
