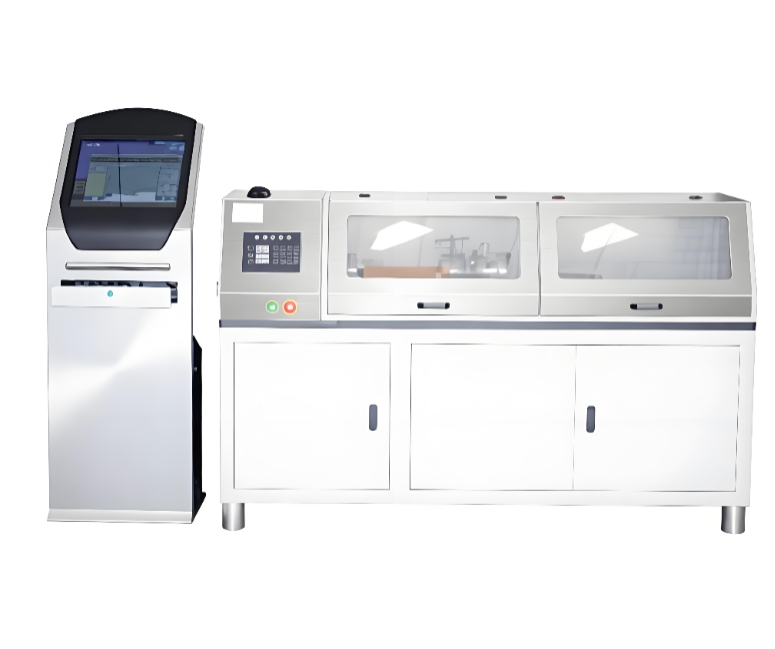

The Aluminum Alloy Torsion Testing Machine is mainly used for torsion testing of raw materials, semi-finished components, and finished components.The tested specimen is installed between adjustable fixtures, allowing the machine to accommodate different specimen sizes and perform torsional mechanical performance tests.The machine adopts an MCU microcontroller control system with LCD display, featuring an intuitive operation interface and easy parameter setting. Equipped with an AC servo motor and precision reducer transmission system, it provides uniform loading, stable operation, no impact during loading, and accurate data acquisition and control.
The machine is mainly used for torsion performance testing of metal materials, including:
Measurement of torsion angle of metal materials.
Measurement of torsion torque of metal materials.
Curve analysis of metal material torsion performance.
Measurement of torsion time and torsion speed.
Measurement of maximum torque and peak torque.
Fixed-cycle torsion testing.
Constant torque testing.
Destructive torsion testing.
Material qualification testing.
Windows-based test software for data acquisition and processing.
Real-time acquisition, calculation, display, and printing of test results.
Curve analysis function: allows users to access curve data point by point, analyze torque-angle relationships, and zoom in or restore local curve sections.
Manual or automatic zero adjustment for torque and angle measurement channels.
Automatic data storage of test conditions and test results for later review.
Batch testing function: multiple specimens can be tested continuously under preset conditions, with test parameters and results stored for easy recall.
Supports printing of detailed test reports.
The Aluminum Alloy Torsion Testing Machine / Copper Alloy Torque Testing Machine / Metal Material Torsion Testing Machine should be operated under the following conditions:
Ambient temperature: 10°C–35°C, with relative humidity ≤80%.
Installed on a stable foundation or workbench.
The working environment should be free from vibration and corrosive media.
The power supply voltage fluctuation should not exceed ±10% of the rated voltage.
| Item | Technical Parameters |
|---|---|
| Product Name | Aluminum Alloy Torsion Testing Machine / Metal Material Torsion Testing Machine |
| Machine Type | Horizontal Type |
| Testing Machine Accuracy Grade | Grade 1 |
| Accurate Measurement Range | 1%FS–100%FS |
| Torque Indication Error | Better than ±1% |
| Torque Repeatability Error | Better than 1% |
| Angle Resolution | 0.01° |
| Angle Measurement Accuracy | Better than ±1% |
| Torsion Fixtures | Three-Jaw Chuck Type, Bidirectional Top Clamping Type |
| Test Stroke | 300 mm or 500 mm (Expandable) |
| Torsion Speed Control Range | 0.01–5 R/min Stepless Speed Regulation |
| Torsion Speed Control Accuracy | Better than ±1% |
| Appearance | Complies with GB/T 2611 Requirements |
| Complete Set | Meets Standard Requirements |
| Protection Function | Overload Protection Function |
| Power Supply | 220 V, 50 Hz |
