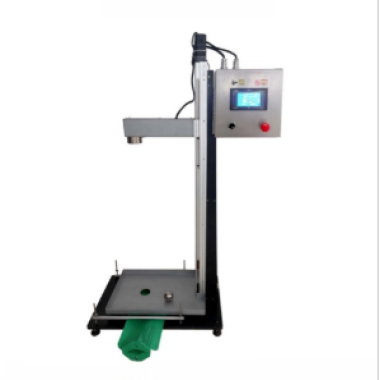

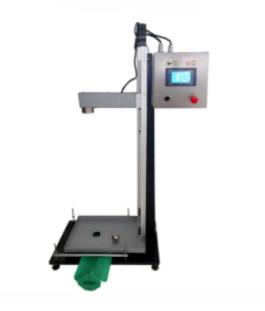

Anti-glare Panel Falling Weight Tester

Meet the standard

GB/T24718-2023，GB/T 24718-2009，JTG/T D33-2012

Scope of application

The anti-glare board impact testing machine is designed and produced for each testing unit to measure the impact resistance of the anti-glare board, which is suitable for plastics, plastic products ceramics, glass fiber, tempered glass and other materials and test the hardness of coatings.

Instrument features

With a sample holding device, to prevent inaccurate results caused by random sample projectiles;

With protective protection plate, to prevent the ball from secondary collision with the sample and the ball bounce injury;

Double overshoot protection, the overshoot motor automatically stops, need to be manually lifted to prevent damage to the instrument and protect the user;

Program with automatic memory function, power off or unplug, is still the memory setting before power off;

Motor with holding brake function, the arm will not slide down in the case of power failure;

Laser rangefinder ranging, ranging accuracy;

Two modes of operation, namely automatic and manual two ways;

Low-voltage components such as: brand buttons, relays, AC contactors, etc., stable performance, safe and reliable;

Easy to install, easy to operate, long service life.

Standard configuration

1. One host

2. 1 standard iron ball

3. One national standard power cable

4. Product packing list 1 copy

5. 1 copy of product manual

6. One copy of product certificate

Technical parameters

Electromagnet suction 50kg

The steel ball weighs 1kg±10g

Steel ball diameter 63mm

Cantilever extension length 350mm(310mm from the center of the ball)

Cantilever lifting stroke 300mm(i.e. impact height can be adjusted at 900-1200)

Laser sensor measurement accuracy 1mm

The laser sensor has an error of 5 parts per thousand

Laser spot 0.5-1mm

The diameter of the anti-secondary impact partition is 65mm, and the height is adjustable from 20-110mm

Weight 130kg
