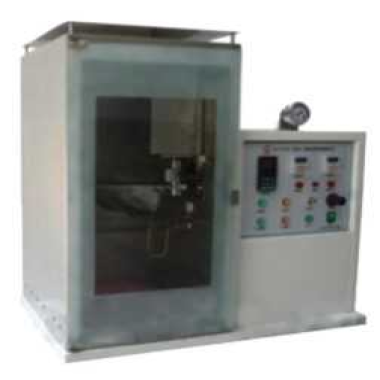

Medical Face Mask Fire Resistance Tester

Mask fire tester checks flame resistance via head mold at set speed.

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

This Medical Face Mask Fire Resistance Tester is mainly used to test the flame retardant performance of medical masks. The combustion performance of the mask is measured through a head mold wearing a mask de-vice to contact with the flame at a certain linear speed.

The device is mainly used in the field of medical protection, and also can also be used for
testing flame retardant properties of other textile coating materials.

GB 19083-2010 Technical requirements of
medical protective masks
YY 0469-2011 Technical requirements of
medical surgical masks-Blood penetration
test device
GB 2626-2006 Respiratory protective products, Self - priming filtering particulates respirator-flammability
BS EN136-1998 Respiratory protective de-
vices -Full face masks - Requirements testing, marking

Items	Parameters
Linear velocity of head automatic movement	（60±5）mm/s
Flame height	40±4mm
Flame temperature measurement	Thermocouple detection
Burner height adjustment range	30mm
Metal head mold surface thickness	2~3mm，Resistance to flame combustion
Combustion timer	0~9999.9s
Accuracy	±0.1s
Power supply	AC220V，50Hz，500W
Weight	About 30kg
When the flame is （20±2）mm above the burner, the temperature is （800±50）℃.
distance between the top of the burner and mask lowest point is（20±2）mm.

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
