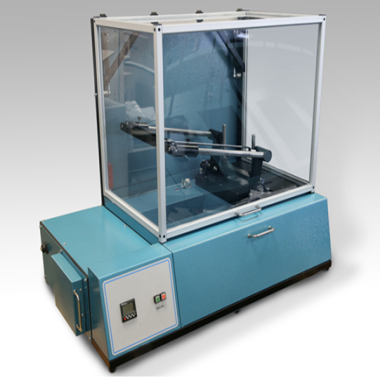

Measures bending stiffness of shoe shanks/heel stiffeners per BS 5131-4 standard.
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
SATRA TM256: Flexural and torsional stiffness testing for athletic, safety, and casual footwear.
SATRA TM194: Dynamic fatigue resistance evaluation for shoe midsole and outsole integrity.
1. Dual-Mode Testing
Longitudinal & Torsional Stiffness: Simultaneously measures bending resistance (flex) and twist rigidity in a single cycle.
Universal Compatibility: Adapts to all shoe types—running, hiking, work, and orthopedic footwear.
2. High-Speed Automation
30 Cycles/Minute: Industrial-grade motor for rapid fatigue testing (0–50° flex angle).
Zero-Drift Actuators: Maintains ±0.1° angular accuracy over 100.000 cycles.
3. Precision Sensing
Strain Gauge Technology: 0.01 N·m resolution for torque and 0.1° angular feedback.
Self-Compensating Algorithms: Corrects for specimen slippage and hysteresis.
4. User-Centric Workflow
7” Touchscreen HMI: Pre-loaded SATRA protocols with adjustable test parameters.
Real-Time Curve Tracing: Live plots of torque vs. angle during testing.
5. Advanced Data Management
USB/PC Connectivity: Export raw data, cycles-to-failure, and stiffness coefficients.
Cloud Integration: Wireless sync to LIMS platforms for collaborative R&D.
Dynamic Testing System:
Servo-electric actuator with 0–50° programmable flex range.
360° torsion axis with ±180° rotational limits.
Precision Fixturing:
Quick-change shoe clamps for US Men’s 5–15 (EU 38–50) sizes.
Adjustable torsion line alignment for varied shoe geometries.
Sensor Suite:
1.000 N load cell for flexural force measurement.
50 N·m torque sensor with overload protection.
Software Bundle:
ShoeFlex Pro™: Automated stiffness coefficient calculation (ASTM D790 equivalent).
Fatigue Analyzer: Predicts lifespan via stress-cycle (S-N) curve modeling.
Safety Systems:
Emergency stop with E-Stop loop monitoring.
Over-torque shutdown at 110% of rated capacity.
Standard Kit:
5 × Universal shoe clamps (adjustable width).
USB data cable and PC software license.
Advanced Analytics:
Fatigue Predictor: AI-driven lifespan estimation module.
CloudLink: Remote monitoring for global teams.
Calibration Services:
Annual recalibration with NIST-traceable certificate.
Safety Upgrades:
Explosion-proof enclosure for solvent-resistant testing.
HEPA filtration for particle-sensitive labs.
Consumables:
20 × Disposable sample alignment markers.
1L Silicone lubricant for high-cycle testing.
| Specification | Details |
|---|---|
| Flex Angle Range | 0° to 50° (adjustable in 1° increments) |
| Torsion Range | ±180° (360° continuous rotation) |
| Test Speed | 30 cycles/minute (1–60 Hz adjustable) |
| Load Capacity | 1.000 N (flex) |
| Angular Accuracy | ±0.1° (±0.05° with calibration kit) |
| Power Supply | 220V/50Hz (110V/60Hz available) |
| Dimensions (W×D×H) | 600mm × 500mm × 1.100mm |
| Weight | 95 kg (net) |
