Measures static water wicking/anti-siphon of footwear materials.
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

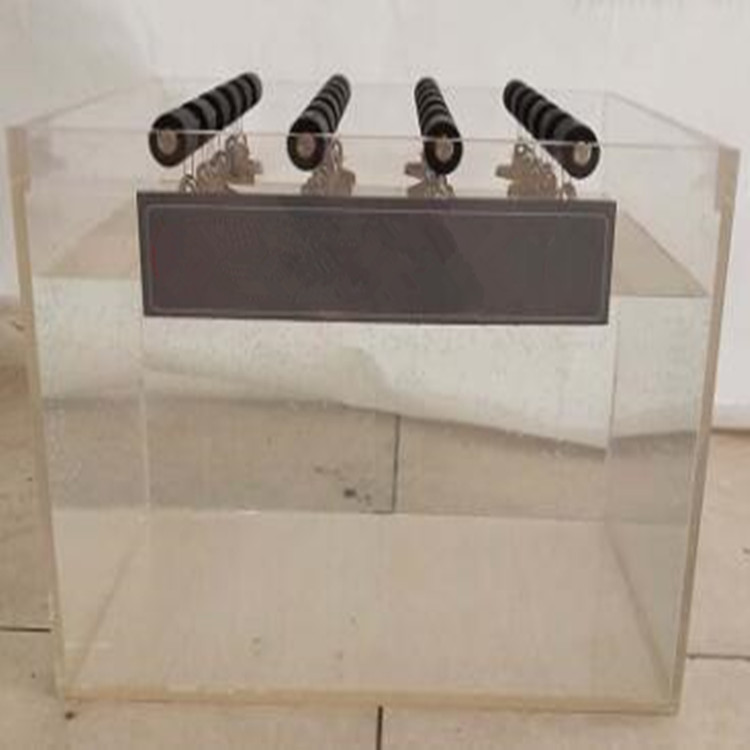

The Shoelace Anti-Siphon Tester is designed to evaluate the waterproof and anti-siphon performance of various footwear materials, including waterproof leather, mesh, shoelaces, ribbons, and other components. Using static suspension methods, the tester measures the height of water climb to assess the material’s resistance to water ingress and wicking behavior. It is suitable for laboratory testing of footwear materials, components, and finished products.
(1)Testing waterproof leather and synthetic leather used in shoes for water ingress resistance.
(2)Evaluation of mesh and textile shoe components for static anti-siphon performance.
(3)Assessment of shoelaces, ribbons, and webbing for moisture penetration under static immersion.
(4)Quality control in footwear manufacturing, ensuring materials meet moisture resistance standards.
(5)R&D evaluation of new waterproof coatings or treatments applied to leather, textiles, and shoelaces.
(6)Laboratory testing in academic, research, and industrial labs for anti-siphon behavior of footwear materials.
(1)GB/T 17219 — Test Method for Water Repellency of Textile Materials
(2)EN 1717 — Protection Against Contamination of Drinking Water by Backflow
(3)ASTM F2023 — Test Method for Water Resistance of Shoe Components
(4)ISO 3822-4 — Textiles — Determination of Water Repellency and Wicking
(1)Measures critical moisture management property, quantifying static anti-siphon performance of footwear materials.
(2)Capable of testing multiple sample types, including leather, mesh, shoelaces, and ribbons.
(3)Simultaneous testing of up to 20 samples for improved efficiency.
(4)Provides objective measurement of water climb height using calibrated scales.
(5)Straightforward and reproducible static suspension method ensures consistent results.
| Item | Specification |
|---|---|
| Leather/Mesh Sample Size | 76 × 25 mm |
| Shoelace/Webbing Sample Size | 76 × width mm |
| Line-Type Sample Size | 76 × width mm |
| Maximum Number of Samples Tested Simultaneously | 20 |
| Water Level Height | 450 mm |
| Immersion Position | 13 mm |
| Suspension Time | 0.5 hours / 2 hours |
(1)Sample clamps or clips for suspension
(2)Water trough or bath
(3)Measuring rulers/scales for water climb height
(4)Support frame or rack for up to 20 samples
(5)Instruction manual
(1)Secure the upper end of the sample in the clamp on the suspension stand.
(2)Adjust water level to the designated immersion position (13 mm).
(3)Start the test and maintain the sample in a static suspension for the set time (0.5 or 2 hours).
(4)Observe and record the water climb height on the measuring scale.
(5)Compare measured values against standard requirements to assess compliance.
(1)Keep water trough clean to prevent contamination affecting measurement.
(2)Check clamps and suspension frame for secure positioning before each test.
(3)Periodically inspect rulers/scales for readability and calibration.
(4)Drain and dry the water bath after testing to prevent corrosion or residue buildup.
(5)Store the instrument in a dry environment to ensure longevity.
