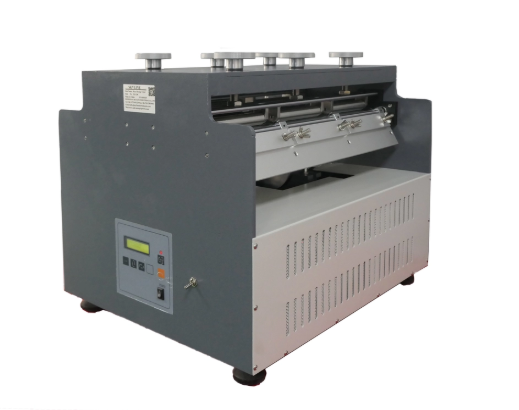

ASTM D1052 Ross Flexing Tester

Detailed Product Description

Instrument introduction

Install the shoe sole strip test piece or the whole shoe sole on the ROSS tortuous testing machine, make the incision fall directly above the center of the shaft of the ROSS tortuous testing machine, and drive the test piece or the whole shoe sole on the shaft for 90 degrees of freedom through the ROSS tortuous testing machine Tortuosity, after a certain number of tests, measure the length of the incision of the test piece, and use the growth rate of the incision to evaluate the tortuosity resistance of the tested shoe sole.

Comply with standards

GB/T2099. ASTM-D1052. ISO-5423. SATRA TM60. HB-T2411 and other standards.

What is a Flex Tester?

Flex Tester is to test the resistance to folding of flexible materials, such as rubber, leather, synthetic fabrics, films, etc. Flexing tester complies with ISO 5402. ISO 7854. BS 3424. L1096. ISO 2313. AATCC 66. etc.

Technical parameters

Six outsoles (12 test pieces) can be tested at the same time.

Flexing angle: 60°,(90±2)º.

Speed: (60r/min, 100r/min) can be switched.

Diameter of tortuous shaft: 10mm.

Power source: AC110V, 10A.

Weight: about 108Kg.
