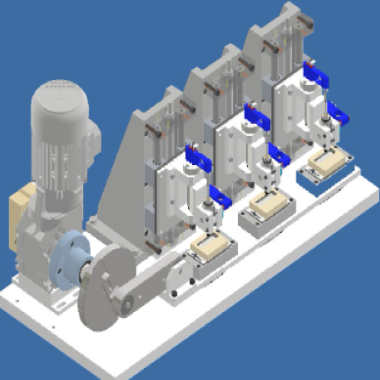

The STD-TE 88 Reciprocating Pin on Plate machine is a three station wear and friction tester primarily designed for testing polymers and coatings in a production environment. The machine can also perform tests in accordance with ASTM F732.
The machine includes an a.c. variable speed gear-motor with variable throw crank, reciprocating assembly, three load, friction and wear pin carrier assemblies and a control and data acquisition system. Load is applied manually and measured with a force transducer. Friction is measured with a force transducer and wear is sensed by linear potentiometer.
| Normal Load: | 10 to 1.000N |
| Signal Conditioning: | Strain Gauge Amplifier Module |
| Friction Force Range: | 250 N |
| Signal Conditioning: | Strain Gauge Amplifier Module |
| RMS/DC Converter Module | |
| Wear: | Linear Potentiometer |
| Range: | 2 mm |
| Resolution: | 0.5 µm |
| Specimen Holder: | 8 mm and 5.5 mm diameter pins |
| Optional Holders: | 10 mm and 6 mm diameter balls |
| Interface: | USB Serial Link Interface Module |
| Software: | COMPEND 2000 |
| Motor: | a.c. Vector Motor 0.55 kW |
| Contact Configurations: | Pin on Plate |
| Ball on Plate | |
| Temperature Range: | Ambient to 200°C |
| Heating Power: | 800 W |
| Temperature sensor: | k-type thermocouple |
| Maximum Stroke: | 50 mm |
| Maximum Frequency: | 5 Hz |
| Maximum Frequency @ Maximum Stroke: | 2 Hz @ 50 mm |
| Automatically Controlled Parameters | Frequency |
| Test Duration | |
| Manually Controlled Parameters | Load |
| Reciprocating Stroke Length | |
| Measured Parameters | Friction |
| Load | |
| Temperature | |
| Wear | |
| Frequency | |
| Number of Cycles | |
| Test Duration | |
| Friction Coefficient | |
| Sliding Distance |
