Instrument introductionInstall the sole test piece on the EN Flexing testing machine, so that t
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

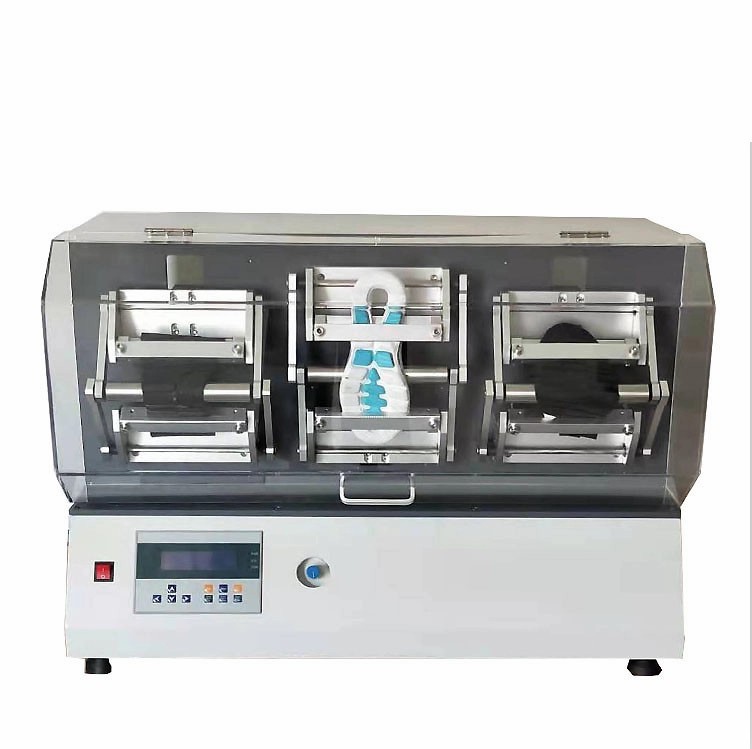

Install the sole test piece on the EN Flexing testing machine, so that the incision falls just above the center of the rotating shaft of the EN Flexing testing machine, and the EN Flexing testing machine drives the test piece to stretch (90±2)º on the shaft to bend, After a certain number of tests, the length of the incision of the test piece is measured, and the torsion resistance of the test sole is evaluated by the growth rate of the incision.
Comply with: GB/T20991. GB21148. SATRA TM161. EN20344. ISO-17707. EN344 standard.
1. Three outsole can be measured at the same time
2. Bending angle: (90±2)º
3. Speed: (5 to 150) r/min adjustable
4. Diameter of zigzag shaft: 30mm
5. Volume; (83x44x62) cm
6. Weight: about 115kg
7. Power: frequency conversion 400w
8. Power supply: AC220V, 5A
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
