Footwear Testing Equipment Shoe Head Peeling Tester 100kg Capacity

Instrument introduction

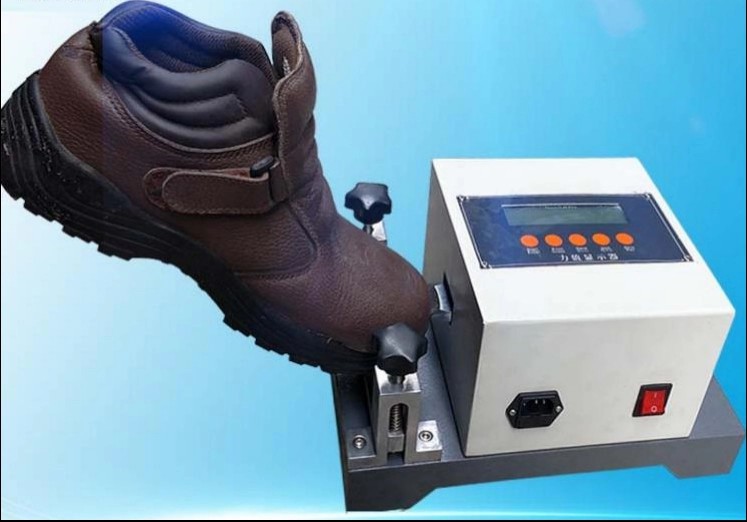

This testing machine is used to test the peeling strength between the sole and the upper of finished shoes. The principle is that the shoe is put on the last and clamped on this testing machine, and the sole and the upper are combined and peeled off with a peeling knife. The force value of peeling initial glue is measured as peeling force, and the peeling strength is calculated according to the width of the peeling knife edge.

Reference standard

Comply with: GB/T3903.3.BS 1870.BS 4676.SATRA TM404

Technical specifications:

1. model: SL-L28.

2. Capacity: 100kg.

3. Knife edge width: (20±0.1)mm and (10 0.05) mm.

Accessory part

1. 1 pair of shoe last and 2 stripping knives.

2. 1 manual, 1 power cord and 1 instrument data guarantee.
