StandardsBS 3424 P9. ISO 7854PrincipleFold a strip of coated fabric two times with their l
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
BS 3424 P9. ISO 7854

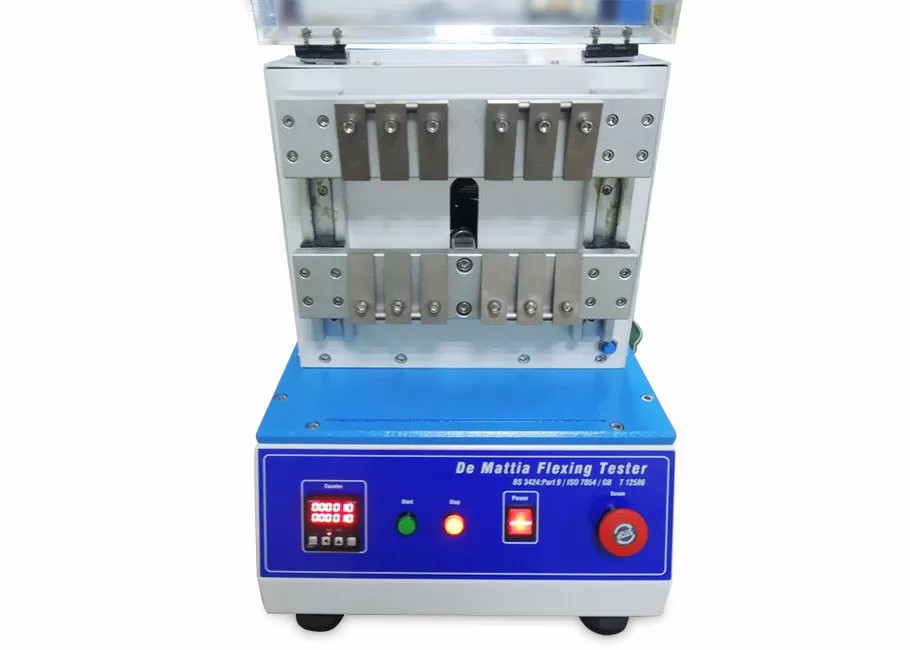

Fold a strip of coated fabric two times with their long edges stacked to form a 125 mm × 12.5 mm strip. Install the folded strip between a pair of flat clamps, one of the clamps can be reciprocated, causing the folded specimen to bend outward five times per second. This high-speed folding of the sample continues until the predetermined number of cycles or sample is significantly damaged.
Item | Specification |
Fixtures | 6 Group |
Test Speed | 5.0Hz±0.2Hz(300±12r/min) |
Fixture Width | 20mm |
Test track | Vertical reciprocating motion |
Test stroke | 57mm |
Fixture minimum space | 13mm±0.5mm |
Fixture max space | 70mm±1mm |
Specimen size | 37.5mmx125mm |
Specimen quantity | 6 pcs, wrap and horizontal each 3 pcs |
Dimension(WxDxH) | 36x35x50cm |
Weight | ≈45Kg |
Power supply | 1∮ AC 220V 50Hz 3A |
