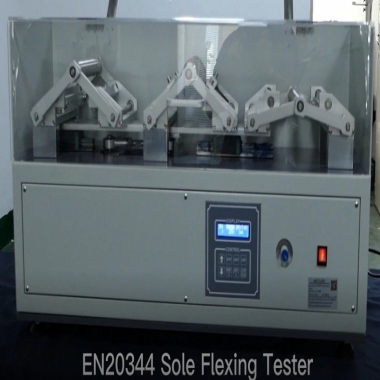

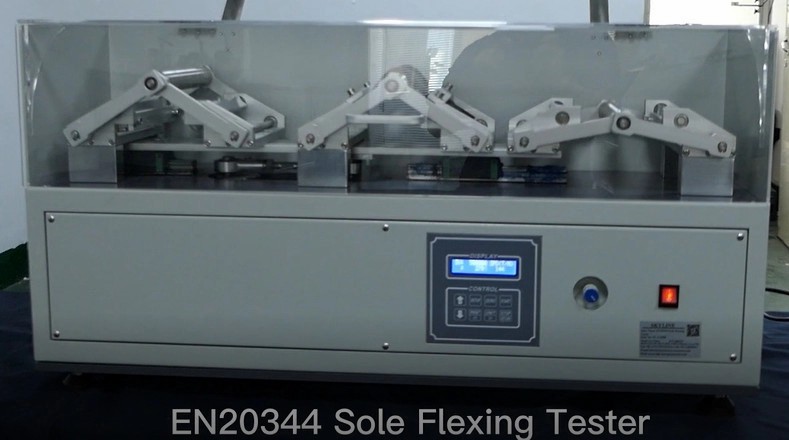

Install the sole test piece on the EN sole flexing testing machine, so that the incision falls just above the center of the rotating shaft of the EN sole flexing testing machine, and drive the test piece on the shaft through the machine to stretch flexing (90±2)º .After a certain number of tests, measure the length of the incision of the test piece, and evaluate the torsion resistance of the test sole by the growth rate of the incision.
| Test number | Three outsole can be tested at the same time |
| Flexing degree | (90±2)º |
| Speed | (5 to 150)r/min adjustable |
| Volume | 1000*300*530mm |
| Diameter of flexing shaft | 30mm |
| Weight | 118kg |
| Power | 190w |
| Power supply | AC220V,10A |
GB/T2099 ,EN ISO 20344.EN ISO17707.EN-344 and SATRA TM161
