Product informationThis machine is designed for the resistance of all shoelaces to abrasion. Tw
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

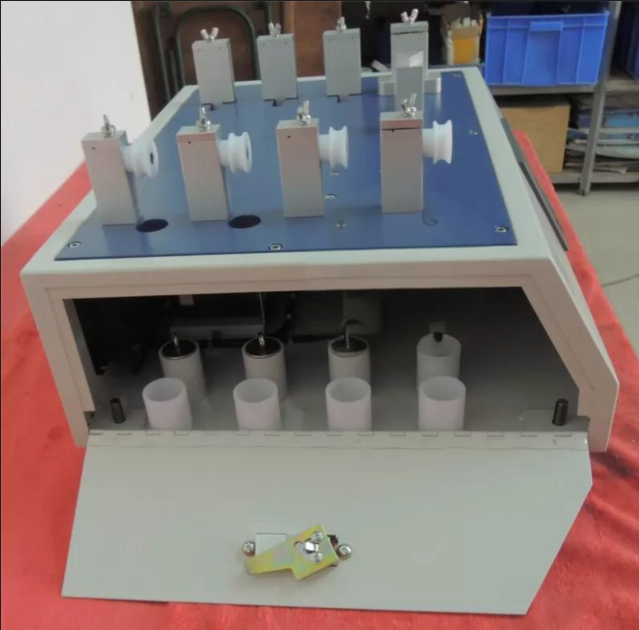

This machine is designed for the resistance of all shoelaces to abrasion. Two shoelaces are horizontally crossed in a moveable clamp, rubbing against each other, so as to determine their abrasive resistance.4 sets of specimens can be tested once.
| Test position | 4 groups |
| Control | Touch-screen control, 0~999.999 |
| Min. Separation between movable and fixed fixtures | 280 ±50 mm |
| Movable fixture stroke | 35± 2 mm |
| Test speed | 60 ± 6 cyles/min |
| Profile board | Angle 52.5degree; Length120 mm |
| Stainless metal strip | W: 25mm, L: 250mm |
| Weight | 250 ± 3g |
| Power supply | 1phase AC 220V 50/60HZ |
| Dimensions ( L x W x H ) | 66 x 58 x 42cm |
| Weight | 50 kg |
| Standards | DIN 4843 SATRA TM 154 ISO 22774 QB/T 2226 |
Disclaimer: The above content is for reference and communication only among industry insiders, and does not guarantee its accuracy or completeness. According to relevant laws and regulations and the regulations of this website, units or individuals who purchase related items should obtain valid qualifications and qualification conditions.
