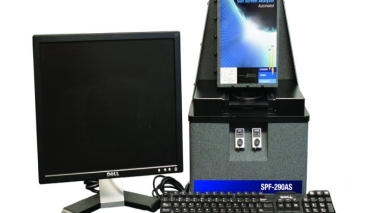

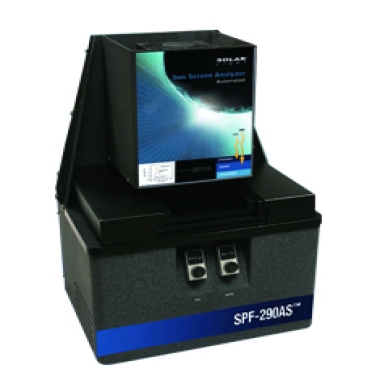

Fabric UV resistance tester

The Fabric UV Resistance Tester is designed to simulate solar UV radiation and evaluate the ultraviolet protection performance of textiles, sun-protection products, and cosmetics. The instrument replaces in-vivo testing, providing accurate SPF measurement, UVA/UVB analysis, and critical wavelength evaluation. It combines a stable UV-visible light source, spectrophotometric detection, and powerful data analysis software, offering fast, economical, and reproducible testing.

Application

Assessing SPF value, UVA/UVB absorption, and UV protection of fabrics, sunscreens, and cosmetics.

Research & development of UV protective clothing and sun-care products.

Quality control in textile manufacturing, cosmetics production, and certification labs.

Replaces human body (In-Vivo) testing for cost-effective and standardized UV evaluation.

Standards

AATCC 183 – Determination of SPF for textiles

AS/NZS 4399 – Sun Protective Clothing Standard

ISO 24443 – In vitro determination of sunscreen UVA protection

Colipa 2011 – European sunscreen testing standard

FDA – Sun protection product guidance

Other international UV protection standards

Features

Covers UVA and UVB spectral region, 290–400 nm, wavelength repeatability: 0.25 nm, monochrome resolution: 1.66 nm, wavelength accuracy: ±0.2%.

Data acquisition and analysis software: automatic calculation of UVA, UVB, UPF, critical wavelength, Boots Star rating, and MPF/absorbance values. Supports up to 36 cumulative tests.

125 W Xenon arc light source with high-performance integrating sphere for stable and uniform UV radiation.

One-year NIST traceability ensures reliable calibration and accuracy.

High linearity: 99.997%.

Software-controlled sampling platform allows automatic scanning, timing measurement, 12 sampling points, and continuous test automation.

NIST verification calibration kit included for user calibration and maintenance.

Technical Parameters

Accessories

Xenon arc lamp module

NIST calibration verification kit

Computer interface and software

Sample holders and scanning platform

Test Procedures

Prepare sample: Mount textile or product in sample holder.

Set test parameters: Select test mode, number of sampling points, and UV intensity.

Start test: Automatic scanning and measurement of UVA/UVB transmission.

Data analysis: Software calculates SPF, UPF, critical wavelength, and Boots Star rating.

Save/export results: CSV or graphical format for reporting.

Calibration check: Use NIST kit to ensure accuracy before testing critical samples.

Maintenance Information

Keep instrument in dry, dust-free environment.

Avoid direct exposure of spectrophotometer optics to sunlight.

Clean integrating sphere and sample holders regularly with soft cloth.

Replace Xenon lamp according to usage hours or decreased intensity.

Perform NIST calibration periodically to maintain accuracy.
