Function of the TesterThis tester can analyze and mechanize the hand movements of craftsmen and prof
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

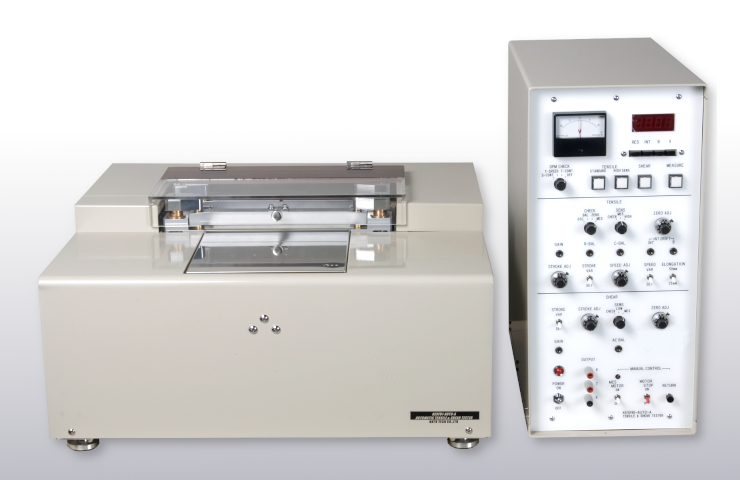

The Tensile and Shear Tester analyzes hand movements-referred to as “tensile” and “shear”-performed by artisans and professionals when judging a fabric’s texture. This device performs these movements mechanically, making it possible to obtain objective numerical data.
Obtainable data includes tensile/shear rigidity, tensile energy, elongation rates, and recoverability for such targets as cloth, paper, non-woven fabric, and film.
Tensile and shear characteristic data is useful for determining stiffness and anti-drape stiffness. These properties often influence form stability and the tendency for wrinkles.
Features
Improved data accuracy
Sample slack is removed through motor chucking and clamping, eliminating errors caused by the user and thus improving the accuracy of data.
Display resolution: 0.01
The KES-FB1-A makes it possible to quantify minute differences in tensile and shear properties.
Specification
| Dimensions (W × D × H) *approx. | Measuring unit: 610 × 535 × 320 mm Amplifier: 230 × 450 × 500 mm |
| Weight *approx. | Measuring unit: 45 kg Amplifier: 20 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | KES-USB (optional) PC (optional) *1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |
| Sample size | [KES-FB1-A] 200 × 200 mm (standard) Thickness: 2 mm (max.) [KES-FB1-AW] 200 × 200 mm (standard) Thickness: 7 mm (max.) |
