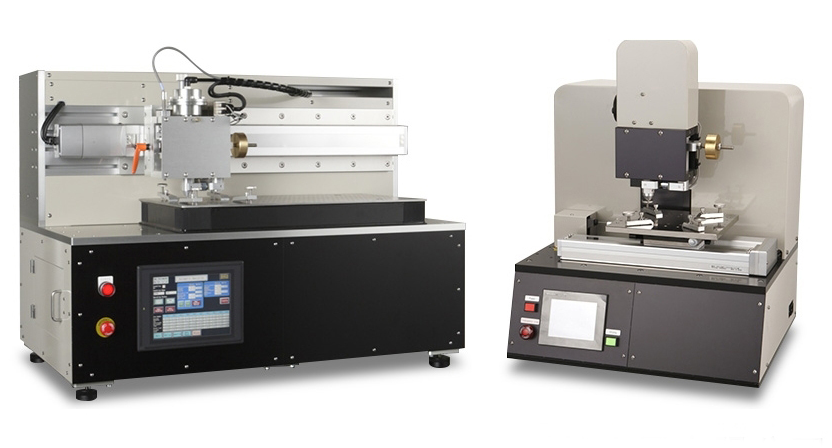

The KK-03 Scratch Resistance Tester is designed for low-load and micro-scratch evaluation of delicate surfaces such as thin films, coatings, and precision materials. With precise low-force control and laser depth measurement, you can accurately assess early-stage scratch damage and surface sensitivity.
Low-load scratch testing of thin films and coatings
Surface sensitivity evaluation of decorative and functional layers
Scratch assessment of electronic and optical materials
Research on micro-scratch behavior and surface initiation damage
Material development requiring fine load resolution
(1) ISO 19252
(2) ASTM D7027-05
| Parameter | Specification |
|---|---|
| Model | KK-03 |
| Dimensions | W545 × D455 × H680 mm |
| Weight | 150 kg |
| Power supply | AC 100 V |
| Maximum power consumption | 60 W |
| Operating environment | 10–40 ℃, 30–70 %RH, non-condensing |
| Test method | Progressive load method |
| Scratch direction | Left → Right |
| Vertical load range | 0.1–5 N |
| Horizontal load | 5 N |
| Scratch distance | Max. 400 mm |
| Scratch speed | 1–200 mm/s |
| Scratch depth detection | Laser displacement sensor |
| Sample size | 200 × 420 mm, thickness ≤ 5 mm |
High-resolution low-load control for delicate materials
Suitable for micro-scratch and surface sensitivity evaluation
Touchscreen-based parameter setting and operation
Teaching function for precise scratch positioning
Stable suspension structure for consistent load application
USB data storage supporting detailed scratch analysis
(1) Standard scratch stylus Φ1 mm
(2) Optional stylus for micro-scratch applications
(3) USB connection cable
(4) Software and user manual
(5) Safety cover (optional)
Fix the sample carefully to avoid deformation.
Set low-load parameters via the touchscreen.
Use the teaching function for precise alignment.
Run the scratch test and record depth data.
Save results for further analysis.
Handle the stylus carefully to avoid damage.
Clean sensors and moving parts regularly.
Verify low-load calibration periodically.
Store the instrument in a clean, stable environment.
1. What is this product?
It is a low-load scratch resistance tester for sensitive surfaces.
2. What is this product used for?
You use it to study micro-scratch behavior and early surface damage.
3. How does this product work?
A low vertical load is applied through a stylus moving horizontally across the surface.
4. Why is this product important?
It allows accurate evaluation of delicate materials where small scratches affect performance and appearance.
5. What industries is this product suitable for?
Electronics, coatings, optical materials, precision manufacturing, and research laboratories.
