Detailed Product DescriptionSTD:Chair Back Durability TestSeat Loading:102kg (225Lb)Backrest Lo
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| STD: | Chair Back Durability Test | Seat Loading: | 102kg (225Lb) |
|---|---|---|---|
| Backrest Loading Force Value: | 334N (75Lb) / 445N (100Lb) | Test Speed: | 10~30 Times/min |
| Number Of Tests: | 80000/120000 Times | Counter: | 0~999 999 Times Can Be Set |
| Highlight: | furniture testing machine ,chair testing machine | ||

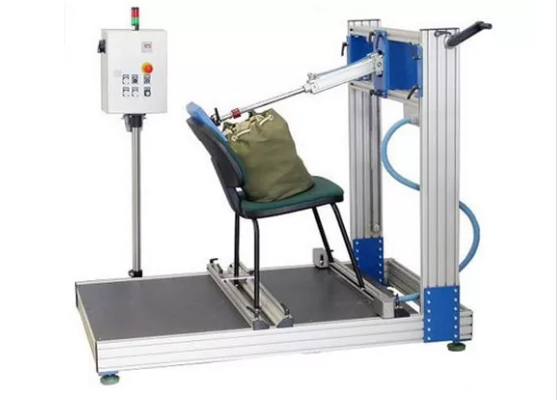

It is used to simulate the situation where people in daily life sit back and lean back against the backrest of the chair. It is suitable for evaluating the fatigue pressure and wear capacity of the chair caused by the force of the backrest.
ANSI/BIFMX5.1-10/15/16/18/12.3
| Seat loading | 102kg (225Lb), weight accumulative |
| Backrest loading force value | 334N (75Lb) / 445N (100Lb) |
| Backrest loading position | When the backrest height is greater than 452mm: 406mm, when the backrest height is less than 452mm: Load the top of the backrest |
| Backrest loading force direction | The angle between the output direction and the backrest surface is 90°±10° |
| Test speed | 10~30 times/min |
| Number of tests | 80000/120000 times |
| Counter | 0~999 999 times can be set |
| Force adjustment method | Adjust the air pressure + power sensor |
| Motion control | PLC control, text display |
| Volume (W*D*H) | 120*100*130cm |
| Gas source | 6kgf/cm^2 or more stable gas source |
| Power supply | 1Ф, AC220V, 3A |
