Product introductionThis machine is used to simulate the ignitability of some special parts of
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

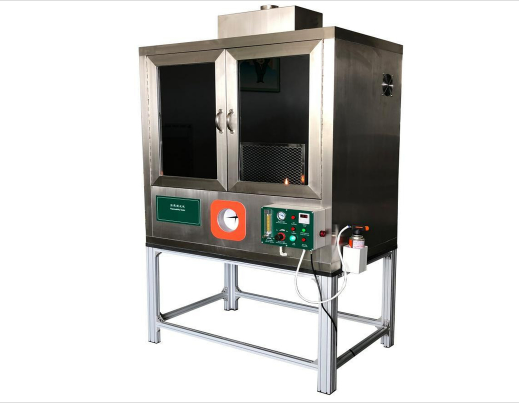

This machine is used to simulate the ignitability of some special parts of furniture assembly placed in a certain sequence when ignited by a certain amount of heat, providing reference data for furniture design and manufacturing
test BS 5852
| Small stainless steel testing frame | 450X300X150mm |
| Inner dimensions of backrest frame | 450±2×300±2mm |
| Inner dimensions of chair frame | 450±2×150±2mm |
| Big stainless steel testing jig | 450X450X300mm |
| Inner dimensions of backrest frame | 450±2×450±2mm |
| Inner dimensions of chair frame | 450±2×300±2mm |
| The airflow of butane | 45 ± 2mL / min(when 25℃) |
| Flame height | 35mm |
| Stainless steel combustion tube outer diameter | Outer diameter: 8.0±0.1mm Inner diameter: 6.5±0.1mm Length: 200+/-5mm |
| Optional Accessory | |
| No. 0 Fire source: Cigarettes | Length:68mm Diameter:8mm Weight:1g combustion speed: 50mm/12.03min |
| White polyester cloth | BS 5852 |
| Wooden Frame | BS 5852 |
| No. 5 Wooden Frame | BS 5852 |
| No. 6 Wooden Frame | BS 5852 |
| No. 7 Wooden Frame | BS 5852 |
| Flame-retardant foam | BS 5852 |
| Combustible foam | BS 5852 |
| CaCI2.6H20 | BS 5852 |
| NaHCO3 | BS 5852 |
| Wetting agent | BS 5852 |
| Nozzles | BS 5852 |
