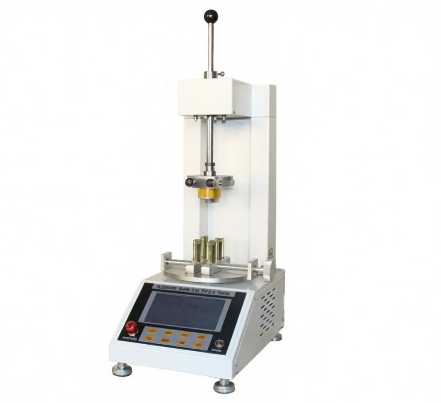

The Automatic Bottle Cap Torque Tester is designed for automatic testing of bottle cap torque performance. It combines electronic technology with precision mechanical transmission and complies with the technical requirements of GB/T 17876.
It is suitable for measuring the opening torque, closing torque, and low-cycle fatigue performance during tightening and opening of threaded bottle caps used for food, beverages, and medical products.
(1) Bottle cap opening torque testing
(2) Bottle cap tightening torque testing
(3) Tightening-opening low-cycle fatigue testing
(4) Threaded bottle container testing
(5) Quality control of food and beverage packaging
(6) Medical and other bottled products
GB/T 17876 — Plastic Anti-theft Bottles for Packaging
| Parameter | Specification |
|---|---|
| Testing Machine Grade | Grade 0.5 / Grade 1 |
| Machine Type | Vertical |
| Maximum Torque | ±20 N·m, customizable |
| Torque Resolution | 0.001 N·m |
| Measurement Range | 1%–100% FS |
| Torque Indication Relative Error | <±0.5% |
| Torque Indication Repeatability Error | <0.5% |
| Torque Resolution | 1/±300000, constant throughout the range |
| Loading Direction | Forward and reverse |
| Angle Measurement Range | 0–365000° |
| Angle Resolution | 0.01° |
| Test Space | 200 mm, automatically adjustable |
| Torsion Speed | 0.1–720°/min, stepless adjustment |
| Machine Dimensions | Approx. 1100 × 300 × 550 mm |
| Power Supply | 220 V, 50 Hz |
(1) Automatic Testing – Automatically completes bottle cap torque testing.
(2) Wide Angle Range – Angle measurement range up to 365000°.
(3) Bidirectional Testing – Supports forward and reverse torque loading.
(4) Automatic Adjustment – Test space can be automatically adjusted.
(5) High Resolution – Torque resolution of 0.001 N·m and angle resolution of 0.01°.
(6) Stepless Speed Control – Torsion speed can be continuously adjusted from 0.1 to 720°/min.
