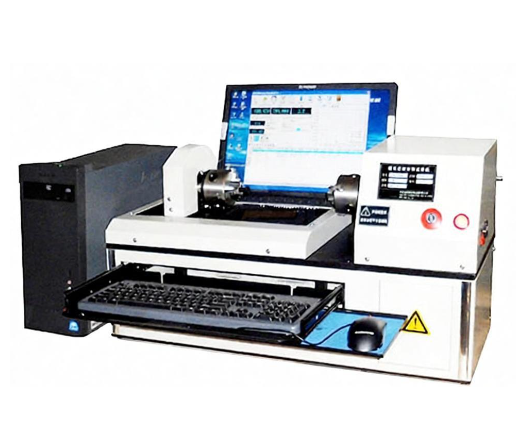

The Threadlocker Adhesive Torsion Testing Machine is mainly used to determine the torque required to unscrew bonded threaded components. The test specimen is installed between adjustable fixtures to accommodate different specimens.
The machine is computer-controlled and can collect torque, peak torque, torsion angle, and test curves. It displays torque-time, torsion angle-time, and torque-angle curves, and supports test data storage, retrieval, and report printing.
(1) Threadlocker adhesive torque testing
(2) Anaerobic adhesive torque testing
(3) Maximum torque and peak torque testing
(4) Torsion angle testing
(5) Destructive torsion testing
(6) Torque-angle curve analysis
(7) Qualification testing
| Parameter | Specification |
|---|---|
| Maximum Test Torque | 10 / 20 / 50 / 100 / 200 / 500 N·m |
| Test Stroke | 300 mm |
| Testing Machine Grade | Grade 0.5 / Grade 1 |
| Torque Measurement Range | 1% FS–100% FS |
| Minimum Torque Reading | 0.01 / 0.1 N·m |
| Angle Resolution | 0.01° |
| Maximum Torsion Angle | 99999° |
| Test Speed | 0.1–720°/min, customizable |
| Angle Indication Relative Error | <±0.5% |
| Angle Indication Repeatability Error | <0.5% |
| Test Force Indication Relative Error | <±0.5% |
| Test Force Indication Repeatability Error | <0.5% |
| Test Speed Accuracy | Better than ±1% of indication |
| Torsion Direction | Forward and reverse |
| Torsion Fixture | Three-jaw chuck |
| Power Supply | 220 V, 50 Hz |
(1) Computer-controlled operation.
(2) Measures torque, peak torque, torsion angle, and test curves.
(3) Displays torque-time, torsion angle-time, and torque-angle curves.
(4) Adjustable fixtures for different test specimens.
(5) Supports forward and reverse torsional testing.
(6) Supports test data storage, retrieval, and report printing.
