I. Product IntroductionThe Drying Rate Tester is designedaccording to AATCC201 standard requirements
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

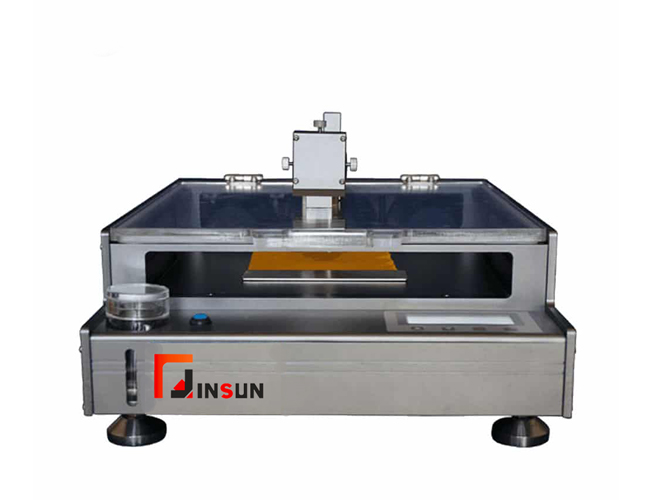

The Drying Rate Tester is designed according to AATCC201 standard requirements. Equipped with high-precision temperature and airflow sensors, automated dripping system completes fabric drying time and rate testing with integrated data analysis, significantly improving work efficiency and measurement accuracy while reducing human operation errors.
AATCC201
Simulates human perspiration drying process: Fabric samples are placed on a 37°C heated plate with 0.2mL water droplet at center. Maintains 1.5m/s ± 0.1m/s airflow for drying. Infrared temperature sensors monitor fabric temperature changes to determine drying completion.
Main testing host
DRT computer analysis software
Sample pressing plate
Thickened aluminum alloy housing provides durable corrosion resistance. Integrated control panel and display enable standalone operation without computer connection.
Parameter Item | Specification |
Heating Plate | 305mm × 305mm |
Metal Press Plate | 150mm × 40mm × 2mm |
Plate Temperature | 37 ± 0.1°C |
Temperature Resolution | 0.01°C |
Airflow Speed | 1.5m/s ± 0.1m/s |
Infrared Sensor | 15~50°C ± 0.1°C |
Fabric Thickness | 0~10mm |
Water Volume | 0.2mL ± 0.001mL (adjustable) |
Data Transmission | Wireless WiFi |
Power Supply | AC220V±10%, 100W or AC110V±10%, 100W |
Dimensions | 520(L) × 400(W) × 260(H)mm |
Weight | Approx. 30kg |
