Safety Glove Cutting Resistance Test Machine and tester for testing the upper, protective gloves, le
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

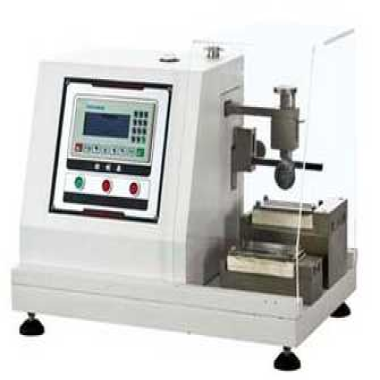

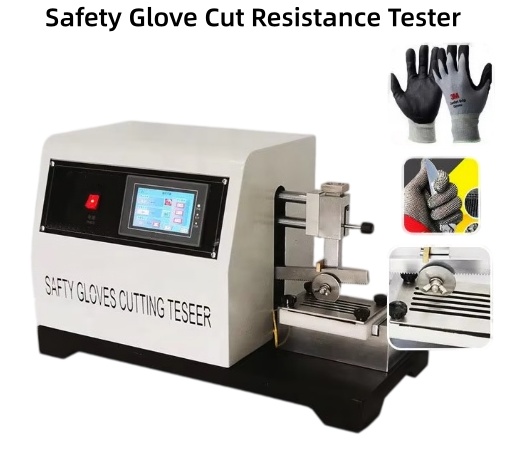

The Gloves Cut Resistance Testing Machine is designed for evaluating the cutting resistance of safety gloves, protective gloves, leather, and other soft materials. It is suitable for testing knife-resistance in safety gloves protection zones but is not suitable for extremely hard material gloves. The instrument provides accurate, repeatable, and standardized results for safety certification and quality control purposes.
The machine is suitable for:
(1) Safety Gloves Industry: Testing cut resistance of industrial, construction, and protective gloves.
(2) Leather and Textile Products: Evaluating knife-resistance of leather, coated fabrics, and synthetic protective materials.
(3) Quality Control: Ensuring compliance of gloves and protective materials with international standards.
(4) Research and Development: Optimizing glove materials for cut-resistance performance.
Specific products tested include: industrial safety gloves, leather work gloves, anti-cut protective gloves, textile protective gloves, and composite safety materials.
The instrument complies with the following international and national standards:
(1) EN ISO 20344 – Personal protective equipment – Test methods for protective gloves
(2) GB/T 20991 – Safety gloves – Cut resistance test
(3) EN 388 – Protective gloves against mechanical risks
(4) EN 340 – General requirements for protective gloves
(1) Rotating Circular Blade: Provides precise cutting action and uniform test results.
(2) Automatic Counting: Blade reciprocates under specified load with automatic cycle counting and test termination.
(3) Adjustable Load and Speed: Blade load and speed are controlled to meet testing standards.
(4) LCD Display Counter: Displays the number of cutting cycles accurately.
(5) High Precision Blade Material: Hard tungsten steel blade with 740–800 HV hardness ensures consistent cutting performance.
(6) Compact and Durable Design: Robust structure suitable for laboratory and industrial use.
| Parameter | Specification |
|---|---|
| Number of Test Samples | 1 group |
| Horizontal Movement Displacement | 50 mm |
| Blade Rotation Direction | Opposite to motion direction |
| Blade Cutting Speed | Maximum 10 cm/s |
| Load on Blade | 5 ± 0.05 N |
| Round Blade Size | Diameter: 45 ± 0.5 mm, Thickness: 3 ± 0.3 mm |
| Total Cutting Angle | 30° – 35° |
| Blade Material | Tungsten steel, hardness 740–800 HV |
| Dimensions (L × W × H) | 550 × 400 × 250 mm |
| Counter | LCD display, 0 ~ 99,999,999 |
| Weight | 57.5 kg |
| Power Supply | AC 220 V, 50 Hz |
(1) Main testing unit – 1 set
(2) Blade set – 2 pcs
(3) Sample fixture – 1 set
(4) Power cable – 1 pcs
(5) User manual – 1 set
(6) Certificate of Quality – 1 set
(1) Install the glove or material sample on the dedicated fixture.
(2) Set the blade load, cutting speed, and total cutting angle according to the standard.
(3) Start the machine; the circular blade will reciprocate under specified load.
(4) The counter automatically records the number of cutting cycles.
(5) Observe the sample for wear or cutting penetration to evaluate resistance.
(6) Save or record test data for quality control and certification purposes.
(1) Clean the blade and fixture after each test to prevent material residue buildup.
(2) Inspect the blade for wear and replace if necessary to maintain accuracy.
(3) Lubricate moving components periodically according to manufacturer instructions.
(4) Store the machine in a dry, dust-free environment.
(5) Perform regular calibration to ensure compliance with international standards.
