Wire Swing Bending Tester

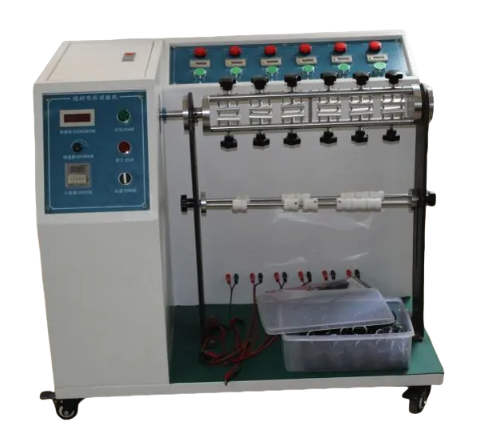

The Wire Swing Bending Tester is designed to simulate bending and swinging conditions that wires may encounter during actual use, such as automotive wires, power cords, and USB cables. By adjusting parameters like bending angle, swing frequency, and test duration, the tester evaluates the durability and reliability of wires under repeated mechanical stress.

Application

(1) Automotive wiring harness testing – assess bending fatigue and durability of automotive wires.
(2) Power cord quality evaluation – ensure long-term mechanical reliability.
(3) USB and data cable testing – simulate repeated use conditions.
(4) Electrical appliance wiring – evaluate insulation and mechanical integrity.
(5) R&D laboratories – test new insulation materials for bending and fatigue resistance.

Standards

(1) UL 817 – Standard for cord sets and power-supply cords
(2) VDE 0620 – Standard for flexible cables for household appliances
(3) GB 2099 – Chinese standard for household and similar electrical wires

Parameters

Features

(1) Simulates real-world bending and swinging stress on wires.
(2) Adjustable bending angles and test speed to cover a wide range of wire applications.
(3) Multiple test stations enable simultaneous testing of up to six wire samples.
(4) Accurate cycle counting via integrated LCD counters.
(5) Supports a variety of weights to simulate different mechanical loads.
(6) Sturdy construction ensures consistent, repeatable test results.

Accessories

(1) Test station clamps for securing wires.
(2) Set of calibrated weights (50 g to 500 g).
(3) Power cable and fuse.
(4) Instruction manual.
(5) Optional data recording module for cycle tracking.

Test Procedures

(1) Secure wire samples on the six test stations using clamps.
(2) Set the desired bending angle and test speed.
(3) Attach appropriate weights to simulate mechanical load.
(4) Configure the number of bending cycles.
(5) Start the test; the instrument will swing and bend wires automatically.
(6) Monitor the cycle counters and test progress.
(7) Upon completion or wire failure, record the number of cycles and inspect wire condition.

Maintenance Information

(1) Clean clamps and weight holders regularly to prevent residue buildup.
(2) Check moving components and lubricate as needed to maintain smooth operation.
(3) Verify test speed and bending angle accuracy periodically.
(4) Inspect electrical connections and power supply for wear.
(5) Store in a dry environment to prevent corrosion of mechanical parts.

Conclusion

The Wire Swing Bending Tester is essential for evaluating the mechanical durability and bending fatigue resistance of wires under simulated real-world conditions. It is widely applicable in automotive, electronics, power cord manufacturing, and R&D laboratories to ensure product reliability and compliance with industry standards.

FAQ

(1) What is this product?
It is a swing bending tester for assessing the bending fatigue and durability of wires.

(2) What is this product used for?
It tests wires under repeated bending and swinging conditions to evaluate mechanical reliability.

(3) What is the working principle of this product?
Wire samples are fixed under controlled bending angles and weights while being swung repeatedly to simulate real-world stress.

(4) Why is this product important?
It ensures wires meet safety and durability standards, preventing insulation damage and mechanical failure during use.

(5) What industries is this product suitable for?
Automotive wiring, power cord manufacturing, USB and data cable production, electrical appliance industry, and R&D laboratories.
