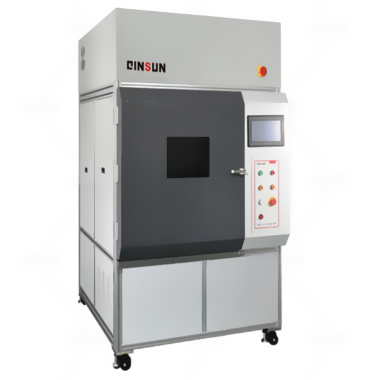

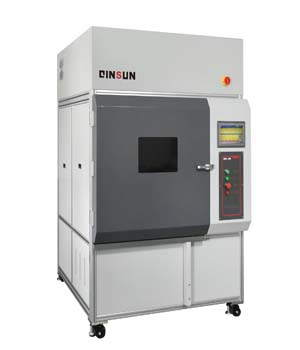

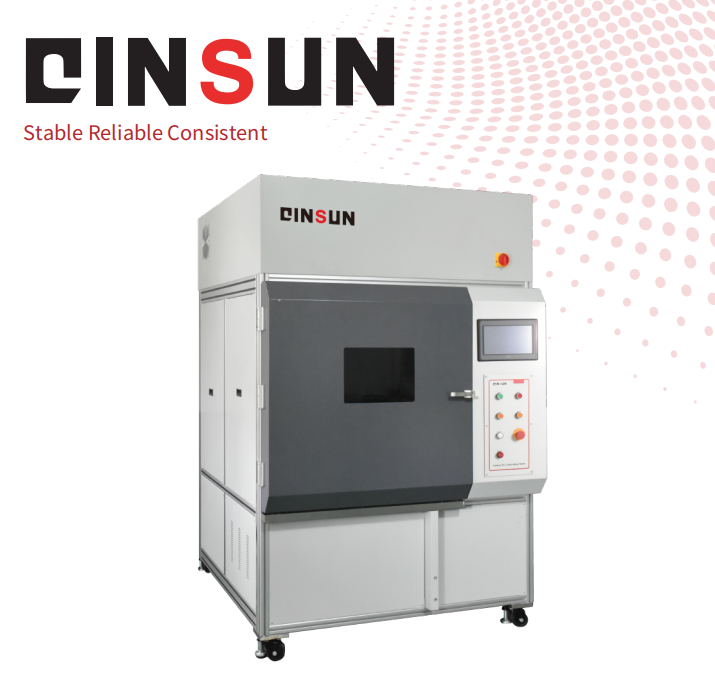

SI80 Sunshine Weatherometer/Carbon Arc Lamp Weatherometer

The carbon arc lamp chamber is mainly used to test the aging performance of automotive interior materials, and most of them are used in Japanese standard aging testing.

Applications

Material Science: Accelerated aging tests for polymers, coatings, and textiles.

Automotive Industry: Validation of exterior components (e.g., bumpers, trim) against UV degradation.

Construction Sector: Weatherability testing for roofing materials, sealants, and facades.

Quality Control: R&D and batch testing for paint, ink, and packaging durability.

Standards

ISO Standards

ISO 4892-1：Plastics — Methods of exposure to laboratory light sources — Part 1: General guidance

ISO 4892-4：Plastics — Methods of exposure to laboratory light sources — Part 4: Open-flame carbon-arc lamps

ISO 11431：Plastics — Accelerated testing by alternating exposure to light and water using xenon-arc lamps

ISO 16474-1：Paints and varnishes — Methods of exposure to laboratory light sources — Part 1: General guidance

ISO 16474-4：Paints and varnishes — Methods of exposure to laboratory light sources — Part 4: Xenon-arc lamps

ISO 2135：Anodizing of aluminium and its alloys — Accelerated test for light fastness of coloured anodic oxidation coatings

ISO 3917：Plastics — Measurement of resistance to weathering

ISO 17398：Paints and varnishes — Determination of resistance to weathering using laboratory light sources

ASTM Standards

ASTM G151：Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices That Use Laboratory Light Sources

ASTM G152：Standard Practice for Operating Open Flame Carbon Arc Light Apparatus for Exposure of Nonmetallic Materials

ASTM D822：Standard Practice for Filtered Open-Flame Carbon-Arc Exposures of Paint and Related Coatings

ASTM D3361：Standard Practice for Filtered Xenon-Arc Exposures of Paint and Related Coatings

ASTM D750：Standard Test Method for Rubber Deterioration — Carbon Black Test

AATCC Standards

AATCC TM192：Colorfastness to Light, Moisture, and Heat

SAE Standards

SAE J2020：Accelerated Exposure of Automotive Exterior Materials Using a Fluorescent UV Apparatus

JIS Standards：JIS K 7350-1：Plastics — Methods of exposure to laboratory light sources — Part 1: General guidance

JIS K 7350-4：Plastics — Methods of exposure to laboratory light sources — Part 4: Xenon-arc lamps

JIS K 5981：Testing method for rubber hoses — Resistance to weathering

JIS A 1415：Test method for accelerated weathering of building materials

JIS A 1439：Test method for weather resistance of exterior wall materials

JIS K 5701-1：Testing methods for paints — Part 1: General items

JIS L 0891：Testing method for colour fastness to light of textiles

JIS H 8685-1：Anodizing of aluminium and aluminium alloys — Test methods — Part 1: General

JIS A 5759：Sealants for buildings

JIS K 6266：Rubber, vulcanized — Determination of resistance to weathering

JIS K 6404-4：Flexible cellular polymeric materials — Determination of ageing characteristics — Part 4: Heat and light exposure

JIS D 0202：Automotive parts — General rules for environmental testing

JIS D 0205:Automotive parts — Test method for weather resistance

JIS D 5500:Automotive interior materials — Test methods

JIS D 4604:Automotive exterior plastic parts — Weather resistance test

JIS Z 0237:Testing methods for adhesive tapes

JIS Z 1528:Testing methods for plastic films and sheets

JIS E 4037:Railway rolling stock — Test methods for interior materials

JIS Z 9107:Colour rendering of safety colours

JIS Z 9117:General rules for weather resistance testing

JIS B 7753:Testing method for accelerated weathering using light and water spray

Complies With

Complies with JIS A 1415. JIS B 7753. JIS D 0205. JIS G 3312. JIS H 8685. JIS K 2246. JIS K 5400. JIS Z 9117. ISO 4892-1. ASTM G23. AATCC, and NCCA standards, ensuring global compliance for accelerated weathering tests of materials exposed to sunlight and moisture.

Product Features

Advanced Light Source:

4 pairs of carbon electrodes generate discharge arcs, filtered to replicate sunlight’s UV-visible spectrum.

Adjustable irradiance (255 W/m²) and blackboard temperature (63°C/83°C ±3°C) for diverse test protocols.

Environmental Simulation:

Programmable humidity (50% RH ±5%) and 16°C ±5°C water spray for condensation/rain effects.

480 mm arc-to-sample distance ensures uniform exposure across all 76 test positions.

Smart Control System:

7-inch color LCD touchscreen with ICON-based interface for intuitive test setup (e.g., ASTM G23 cycles).

Data logging of irradiance, temperature, and cycle duration for ISO/JIS compliance reporting.

Safety & Maintenance:

Multi-level protection: Overcurrent, overvoltage, leakage, and overtemperature alarms.

Self-diagnostic system alerts for carbon rod replacement and water quality issues.

Technical Parameters

Accessories

(1) UVA-340/UVB-313 Lamps (2) Standard Specimen Holder (3) Blackboard Thermometer (4) Irradiance Calibration Sensor (5) Pure Water Filter (6) Automated Control Software

Test Procedures

Sample Loading: Secure specimens to the sample holder. If the sample space is not fully occupied, fill with spacers to maintain stable chamber pressure and humidity.

Lamp Verification: Install UVA or UVB lamps according to standard requirements and confirm cumulative operating time.

Cycle Setup: Configure light intensity, temperature, duration, and condensation/spray cycle intervals in the controller.

Test Initiation: Verify water flow is unobstructed, start the equipment, and the instrument enters automatic cyclic testing mode.

Process Monitoring: Periodically review irradiance readings and operational data logs.

Rating Comparison: After testing concludes, remove samples and assess aging severity through visual color difference comparison, physical tensile strength testing, or chalking grade evaluation.

Maintenance Information

Lamp Replacement: Replace lamps sequentially every 1600-2000 hours to maintain stable irradiance energy.

Water System Cleaning: Use only deionized or distilled water. Clean the water tank regularly to prevent scale buildup that may shorten heating element lifespan.

Sensor Calibration: Calibrate the irradiance sensor every six months to ensure internationally valid test data.

Environmental Ventilation: The test chamber generates heat and should be placed in a well-ventilated area. Clean the intake air filter regularly.

FAQ

1. What is this product?

A: It is a test chamber that simulates solar ultraviolet radiation using UV fluorescent lamps, combined with condensation and spray functions, to accelerate weathering simulation for materials.

2. What is the purpose of this product?

A: It enables rapid testing of material durability for outdoor applications, predicting aging defects like fading and cracking to shorten product development cycles.

3. How does this product work?

A: UV lamps emit specific wavelengths to simulate sunlight degradation, while warm water vapor condenses on samples to mimic dew and high-humidity environments.

4. Why is this product important?

Answer: Ultraviolet rays in sunlight are the primary cause of physical degradation in outdoor materials. This equipment provides a repeatable, traceable aging environment, serving as a critical indicator for quality control.

5. Which industries is this product suitable for?

Answer: It is widely used in the research fields of coatings and paints, plastic building materials, automotive components, textiles and leather, printing and packaging, and various polymer materials.
