Walk-in environmental test chamber ,as a climatic test chamber that may be configured to almost any
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

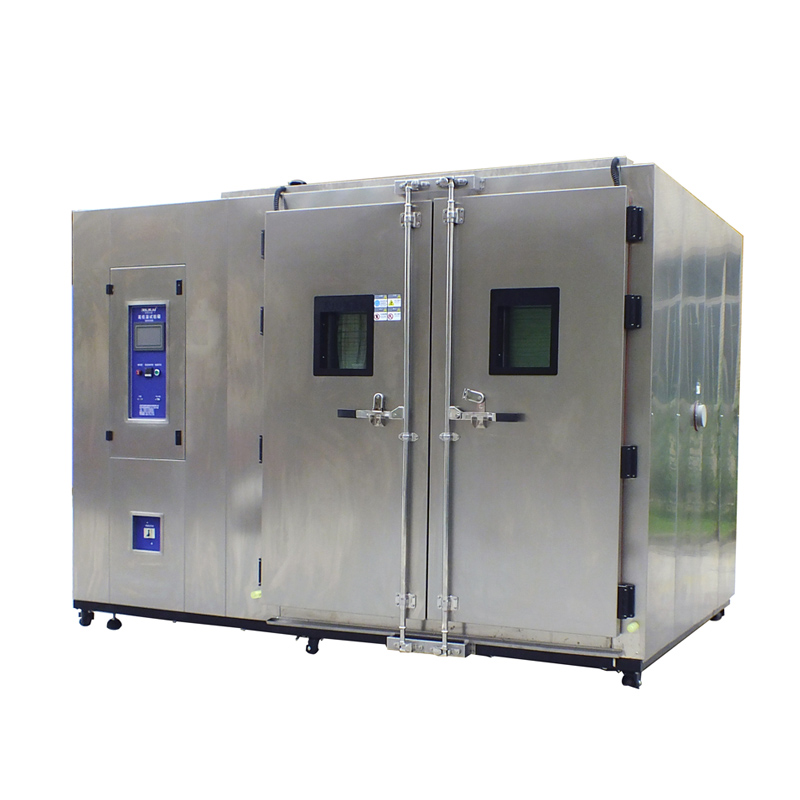

Walk-in environmental test chamber ,as a climatic test chamber that may be configured to almost any large components . this walk in chamber can do Temperature/Humidity Cycling,Constant Temperature/Humidity,Extreme Temp / Humidity Testing, Fast Ramp Rate,Storage Testing,Altitude Testing,Vibration Integration,Solar Simulation etc.
Walk-in environmental test chamber main for the industry of large parts, semi-finished and finished products of the temperature and humidity testing, such as computer terminals, auto parts. Room temperature and humidity is mainly composed of a control panel, distribution plate, base plate, wet blower, heater, humidifier, refrigerator and.
Walk-in and drive-in chambers provide a reliable solution for rigorous testing requirements across industries. Designed to accommodate large products and withstand demanding conditions.
Electronics
Electrical Appliances
Automotive
Rubber & Plastic
| System | Balanced Temperature & Humidity Control System |
| Temp. range | -70°C~150°C |
| Humid. range | 20 ~ 98 percent R.H. |
| Temp. & Humid. accuracy | ± 0.3°C; ± 2 percent R.H |
| Temp. & Humid. regularity | ± 1°C; ± 3 percent RH |
| Resolution | 0.1°C, 1 percent, P.I.D control |
| Heating up | -40°C ~ +100°C within 45 min |
| Heating down | 20°C~ -20°Cwithin 40min |
| Interior dimension(W×D×H) | 60×80×85cm |
| Exterior dimension(W×D×H) | 120×135×175cm |
| Interior material | Stainless steel plate(SUS304) |
| Exterior material | Stainless steel plate(SUS304) |
| Insulation | Rigid foam |
| Refrigeration system | Air cooled, Hermetic compressor, single stage refrigeration system. |
| Display | LCD |
| Safety devices | No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
| Accessories | Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp. |
| Weight | Approx. 400kg |
| Power | AC220V±10 percent 50/60Hz |
The temperature and humidity test chamber redefines excellence with its cutting-edge precision and control, flawlessly simulating diverse environments for accurate, reliable testing.
Control Panel
User Friendly Touch Screen Control (English Version)
Transformer
Increase DC voltage output to fit voltage of chamber usageLong Axis Motor Stable power output, energy saving,fast heat dissipation, copper coil has strong electrical conductivity
Walk-In environmental test chambers are available in many sizes and configurations for both pre-engineered and custom solutions.
Wide Temperature & Humidity Range
Simulates extreme temperatures (-70°C to 150°C) and precise humidity levels (10%-98% RH).
Customizable Testing Conditions
Tailored to replicate diverse environments, including desert, rainforest, or arctic climates.
Large Capacity for Versatile Testing
Spacious interior accommodates bulk products, assemblies, or multiple units at once.
Energy Efficiency & Cost Savings
Advanced thermal insulation and optimized systems lower energy consumption and reduce costs.
High-Precision Data Monitoring
Features real-time monitoring, remote access, and accurate logging for analysis.
Robust & Reliable Construction
Engineered with durable materials and cutting-edge technology for long-term, dependable use.

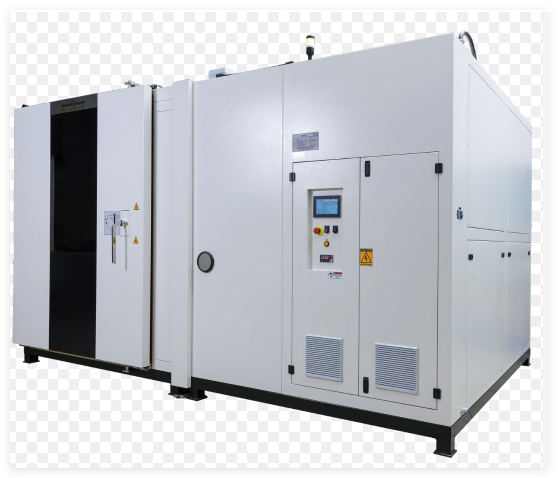

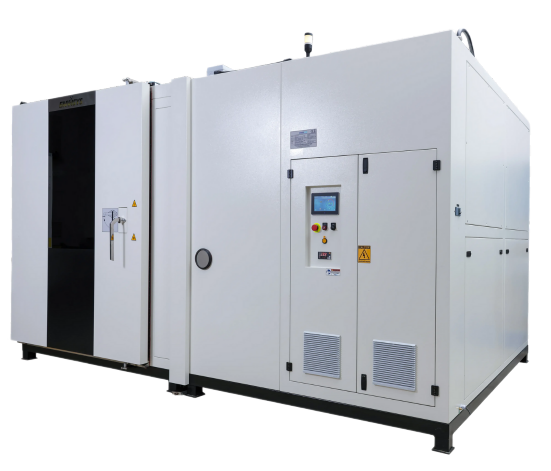

Walk-In and Drive-In Chambers are engineered for superior durability and performance, making them ideal for high-temperature and high-humidity testing applications. Constructed as a single, hermetically sealed unit, these chambers ensure optimal environmental control for a variety of scenarios, including automotive components and full vehicle assessments.
Fully enclosed structure, low-noise
Protection devices, reliable and safe
Imported accessories, durable
Temperature resistant defogging device
Can be customized,including size,temperature & humidity,doors, ramps,accessories...
Q: Can walk-in chambers accommodate large products?
A: Yes, walk-in chambers are specifically designed to accommodate large products or multiple samples simultaneously.
Q: What industries benefit from using walk-in chambers?
A: Walk-in chambers find applications in industries such as aerospace, automotive, electronics, pharmaceuticals, and food and beverage, among others.
Q: How do walk-in chambers simulate real-world conditions?
A: Walk-in chambers replicate environmental factors like temperature, humidity, vibrations, and pressure variations to create realistic testing scenarios.
Q: What advantages do walk-in chambers offer over traditional testing methods?
A: Walk-in chambers provide size and capacity advantages, flexibility in testing, realistic environments, and enhanced product reliability.
Q: How should one choose the right walk-in chamber?
A: Considerations should include temperature and humidity control, performance and accuracy, customization options, and energy efficiency when selecting a walk-in chamber.
