Photovoltaic Module Insulation Resistance chamber

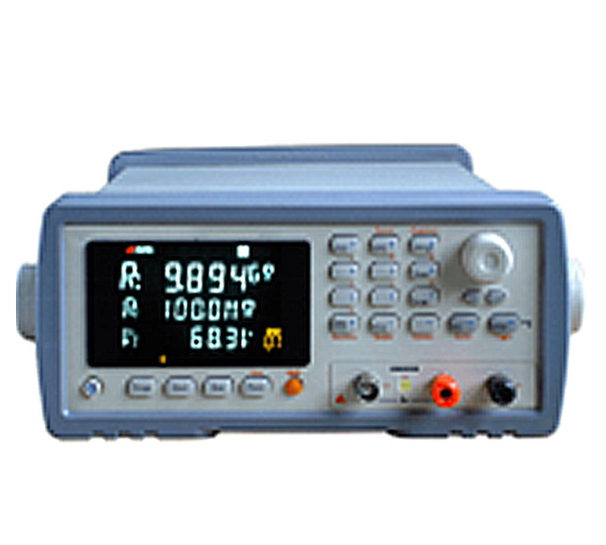

The Photovoltaic Module Insulation Resistance Tester is a specialized instrument designed to evaluate the electrical insulation performance of photovoltaic (PV) modules. By applying a controlled DC test voltage between the conductive parts of the module and its frame or other exposed conductive parts, it measures insulation resistance and leakage current. This allows comprehensive assessment of module electrical safety and reliability under long-term operation and harsh environmental conditions, making it essential for type testing, design verification, and quality control.

Application

The tester is applicable in various PV module testing scenarios:

Crystalline silicon PV module insulation performance evaluation

Thin-film PV module insulation resistance testing

Design verification and type testing of PV modules

Factory inspection and production process quality control

Re-measurement of insulation after damp-heat, wet-freeze, or aging tests

Third-party testing and certification laboratories

Electrical safety performance assessment during R&D of PV modules

Standards

The tester is designed to comply with key national and international standards:

(1) GB/T 9535 – Crystalline Silicon Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval

(2) IEC 61215 – Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval

Parameters

Features

Simultaneous measurement of insulation resistance and leakage current for comprehensive PV module safety assessment

Wide measurement range from kΩ to TΩ, suitable for various modules and testing stages

Continuously adjustable test voltage complying with IEC 61215 requirements

Built-in precise timing control for repeatable testing conditions

High-contrast VFD display showing multiple parameters simultaneously

Comparator function for rapid pass/fail evaluation of modules

Supports RS232C and SCPI commands for system integration and automated testing

Accessories

(1) Insulation resistance tester main unit with display and control system

(2) High-voltage test leads for module conductive parts

(3) Grounding test leads for module frame or exposed conductive parts

(4) Test fixture for connecting electrodes and frame

(5) RS232 communication cable for data transfer

(6) Optional handler interface for integration with sorting/automation systems

(7) Consumable high-voltage test leads for long-term replacement

Test Procedures

Ensure PV module surface is clean and dry to avoid measurement errors due to surface moisture.

Connect the module conductive terminals to the tester high-voltage output.

Connect the module frame or exposed conductive parts to ground.

Set test voltage, charging time, and measurement speed according to standard requirements.

Start the test to measure insulation resistance and leakage current.

Record results and evaluate pass/fail criteria.

After testing, release residual voltage before disconnecting test leads.

Maintenance Information

Regularly inspect and calibrate high-voltage leads and test fixtures to maintain measurement accuracy.

Ensure the VFD display and timing controls function properly before testing.

Periodically check test leads and replace them if insulation degradation occurs.

Clean tester surfaces and connectors to prevent contamination and ensure reliable electrical contact.

Verify that test settings align with applicable standards for consistent results.

Conclusion

The Photovoltaic Module Insulation Resistance Tester provides reliable, repeatable, and precise evaluation of PV module insulation performance. Its wide voltage range, synchronized leakage current measurement, and programmable timing enable accurate assessment of electrical safety under various operating and environmental conditions, supporting R&D, type testing, production quality control, and certification activities.

FAQ

1. What does the Photovoltaic Module Insulation Resistance Tester measure?

It measures insulation resistance and leakage current between the conductive parts of a PV module and its frame or exposed conductive parts. By applying a controlled DC voltage, it determines whether the module meets electrical safety standards, ensuring reliable performance under long-term operation and harsh environmental conditions.

2. What voltage range can the tester output?

The tester provides a DC voltage output from 1.0 V to 1000 V (negative polarity), adjustable continuously. This wide voltage range allows testing of different types of PV modules and ensures compliance with IEC 61215 insulation testing requirements.

3. How does the tester ensure accurate insulation resistance measurements?

Accuracy is maintained through stable voltage output, precise timing control, and a high-resolution measurement range from 100 kΩ to 10 TΩ. During testing, the instrument charges the circuit and measures leakage current, which is then converted to insulation resistance. Regular calibration of leads and fixtures also ensures measurement reliability.

4. Can this tester be integrated into automated testing systems?

Yes, it supports RS232C and SCPI commands for integration into automated test setups or sorting systems. Additionally, optional handler interfaces allow seamless connection with production line automation, improving efficiency and repeatability of batch testing.
