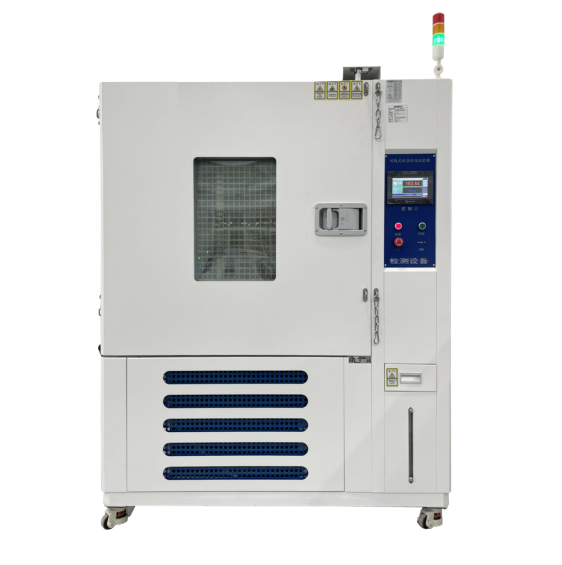

Constant temperature and humidity chamber T200

The Constant Temperature and Humidity Chamber T200 is a programmable climatic testing instrument designed to simulate high temperature, low temperature, constant humidity, and alternating humid-heat environmental conditions. It is widely used to evaluate the reliability, stability, and environmental adaptability of products in industries such as new energy, automotive, electronics, aerospace, semiconductors, instrumentation, and research institutions. With a test volume of 225 liters, the chamber offers precise temperature–humidity control, stable performance, and advanced data logging capabilities.

Application

(1) Reliability and environmental stress testing of electronic components, PCBs, semiconductors, sensors, connectors, etc.

(2) Climatic aging tests for automotive parts, vehicle electronics, plastic components, interior materials.

(3) High–low temperature cycling for aerospace materials and components.

(4) Temperature and humidity tests for home appliances, instruments, meters, and electrical devices.

(5) Product life simulation tests for new energy batteries, modules, and power-related components.

(6) Material adaptability testing for rubber, plastics, composites, coatings, and packaging.

(7) Research experiments in universities and laboratories involving thermal-humidity stress.

(8) Quality control verification for industrial production lines.

Standards

(1) GB/T 2423.2-2008 – High Temperature Test

(2) GB/T 2423.1-2008 – Low Temperature Test

(3) GJB150.4A-2009 – Low Temperature Test Method

(4) GJB150.3A-2009 – High Temperature Test Method

(5) GB/T 2423.4-2008 / IEC 60068-2-30:2005 – Damp Heat, Cyclic (Test Db)

(6) GB/T 2424.6-2006 – Temperature/Humidity Test Chamber Performance Confirmation

(7) GB/T 10586-2006 – Technical Requirements for Damp Heat Test Chamber

(8) GB/T 2424.5-2006 – Temperature Test Chamber Performance Confirmation

(9) Manufacturing Standard: GB/T 10586-2006, GB/T 10592-2008

(10) Calibration Standard: GB/T 5170.2-2017, GB/T 5170.5-2016

(11) Acceptance: Based on mutually confirmed technical specifications

Features

(1) Programmable temperature–humidity control with PID algorithm for stable operation.

(2) High-strength integrated chamber structure ensuring durability and minimal vibration.

(3) Large 7-inch color touch screen with multi-language interface and program editing.

(4) Fast temperature rise and fall rates: up to 3°C/min heating and 1°C/min cooling.

(5) Internal stainless-steel chamber with reinforced load-bearing capacity ≥300 kg.

(6) Double-layer silicone door seal and anti-condensation heated viewing window.

(7) High-efficiency circulation system ensuring uniform temperature and humidity distribution.

(8) Closed-loop intelligent humidification system with automatic water supply and level control.

(9) Environmental-friendly, non-fluorinated refrigerant with France-brand compressor.

(10) Multiple safety protections for compressor, heater, water shortage, phase sequence, leakage, and over-temperature.

(11) USB/RS485/LAN communication for external monitoring, data export, and remote control.

(12) Multi-program capacity with up to 120 groups and 1200 steps.

(13) Memory storage for 24-hour operation logs over 3 months.

(14) Equipped with casters, drainage system, test hole, shelving, and three-color status indicator lamp.

Parameters

Accessories

(1) Stainless-steel shelves × 2 (adjustable height)

(2) Ø50 mm test port + silicone plug + sealing cap

(3) High-brightness LED chamber light

(4) Three-color status indicator lamp

(5) Universal caster wheels

(6) Drainage system

(7) User manual and operation documentation

(8) Power cable and basic installation tools

Test Procedures

(1) Ensure the chamber is placed properly with required clearance and connected to power and drainage.

(2) Turn on the main power switch and check for system self-diagnosis readiness.

(3) Set temperature and humidity values or select a pre-programmed test profile on the touch screen.

(4) Place specimens on the shelves ensuring proper airflow and no contact with chamber walls.

(5) Close the door tightly and start the test in constant or program mode.

(6) Monitor real-time temperature, humidity, and operating status via screen or external connection.

(7) After completion, allow the chamber to return to safe conditions before opening the door.

(8) Retrieve specimens and save/export test data if necessary.

Maintenance Information

(1) Clean the water tank and humidification system regularly to avoid scale buildup.

(2) Inspect door seals and replace if aging or leakage is detected.

(3) Remove dust from condenser fins monthly to maintain cooling efficiency.

(4) Check refrigerant pipelines and joints for signs of oil leakage.

(5) Verify sensor accuracy periodically and perform calibration when needed.

(6) Ensure drainage lines remain unblocked to prevent condensation overflow.

(7) Keep the chamber interior clean and avoid corrosive substances.

(8) Perform annual preventive maintenance for compressor, fans, SSR modules, and control system.
