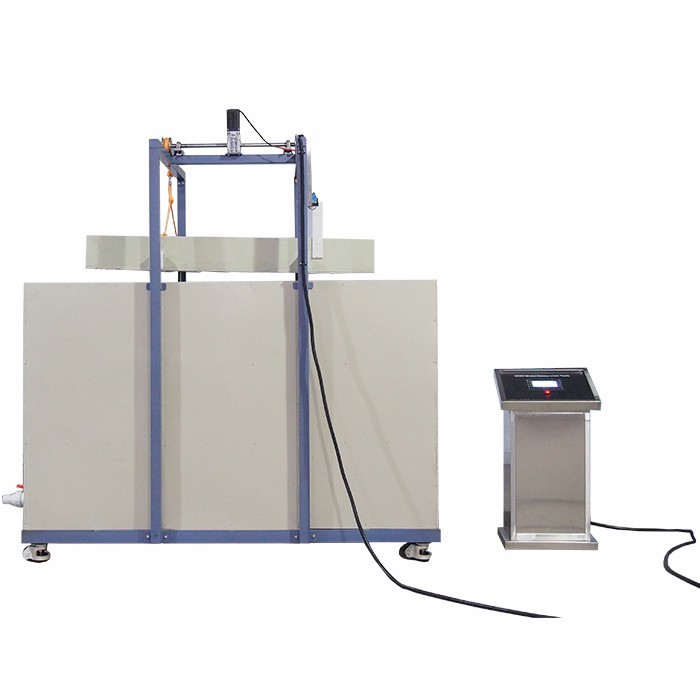

Salt Water Immersion Test Device

Features and Benefits1. Sturdy structure, strong corrosion resistance:The inner and outer layer

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Features and Benefits

1. Sturdy structure, strong corrosion resistance:

The inner and outer layers are made of PVC material, with strong chemical stability; the middle layer is a 3.5 mm thick U-shaped steel frame, which supports the entire machine structure and ensures stable operation in long-term salt water or solution environments.

2. Suitable for large-sized test samples：

Suitable for integrated submersion tests of large-sized equipment such as complete PV modules, battery modules, and outdoor control boxes.

3. Intelligent control, convenient operation：

Equipped with a programmable PLC control system and touch screen interface, it can flexibly set test parameters, suitable for batch testing and repeated verification.

4. Multi-standard compatibility, wide application：

Comply with multiple international standards, covering certification and research and development requirements of various industries such as consumer electronics, photovoltaic energy, battery storage, and automotive electronics.

Specifications

Interior Dimensions	1400 × 2200 × 1500 mm (W × D × H)
Power Supply	220V, 50Hz, 1 Phase
Water Supply	Automatic water inlet port (located at back bottom)
Construction Material	PVC (inner & outer layer) + Metal (middle layer), total thickness 3 cm
Workroom
Internal Material	PVC + Metal + PVC composite
Internal Size	1400 × 2200 × 1500 mm
Shelf Load Capacity	30 kg
Shelf Adjustment	Height adjustable (manual control, slow speed)
Top Cover	Open design for connecting external devices and internal PV modules
Water System
Inlet Connection	Hose connection to faucet
Water Filling	Manual at beginning of test
Water Discharge	Manual via discharge valve after test
Control System	Independent control cabinet with color touchscreen
Air System	Compressor，connected to IPX7 tank, supports lifting system

Details

Workroom:	3-layer composite structure: Both the inner and outer layers are made of corrosion-resistant PVC material, and the middle layer is a reinforced U-shaped steel frame (thickness 3.5mm), balancing chemical stability and structural strength.
Sample holder:	A height-adjustable test stand, with a single-layer load-bearing capacity of 30 kg, suitable for placing PV modules, battery packs, or other components for water immersion tests. The test stand supports height adjustment and operates smoothly.
Automatic lifting system:	One-button automatic lifting structure, driven by an air compression system, connected to an IPX7 air pressure tank, ensuring a stable and safe lifting process and avoiding violent shaking.
Controller:	An independent control cabinet, using a color touch screen controller, with an intuitive interface and convenient operation. Multiple alarm indication functions.

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
